Introduction – Why IP and Networking Matter Today

In our hyper-connected, digitally-driven society, computer networking forms the invisible yet indispensable infrastructure that underpins nearly every facet of modern existence. From the simple act of sending an email or streaming a video to the complex operations of global e-commerce, cloud computing, and critical governmental systems, networks are the conduits for the relentless flow of information. At the very heart of this global communication fabric lies the Internet Protocol (IP). IP is not just a technical term; it's the fundamental language that allows disparate devices and networks across the globe to identify each other and exchange data. Understanding what IP is in networking is the first step towards comprehending the digital universe.

The importance of IP and robust networking cannot be overstated. For businesses, reliable networks are essential for productivity, customer engagement, and innovation. For individuals, they provide access to information, entertainment, education, and social connection. As technology continues to evolve with trends like the Internet of Things (IoT), 5G, artificial intelligence (AI), and edge computing, the demand for skilled networking professionals and a general understanding of why IP is important grows exponentially. The basics of computer networking, anchored by the principles of IP, are no longer niche knowledge but a core competency in the digital age. This guide will navigate you through these foundational concepts, providing the insights needed to thrive in a networked world.

History of IP and the Evolution of Computer Networks

The Internet Protocol, and indeed the internet itself, did not emerge overnight. Its development is a rich tapestry woven from decades of pioneering research, collaborative efforts, and iterative engineering breakthroughs. A look into the history of Internet Protocol reveals a journey from experimental U.S. military projects to the global communication backbone we know today.

The Genesis: ARPANET and the Dawn of Packet Switching & TCP/IP

The story begins in the late 1960s with ARPANET (Advanced Research Projects Agency Network), a project funded by the U.S. Department of Defense's Advanced Research Projects Agency (ARPA, later DARPA). ARPANET's primary goal was to create a resilient, decentralized communication network that could withstand partial outages—a stark contrast to the centralized, circuit-switched telephone networks of the era. It was built upon the revolutionary concept of packet switching, where data is broken down into smaller, individually addressed blocks called packets. These packets could travel independently across the network and be reassembled at their destination, allowing for more efficient use of network bandwidth and greater fault tolerance.

While ARPANET initially used the Network Control Program (NCP) as its core protocol, the need for a more universal set of rules to connect different types of networks (a process called "internetworking") became apparent. This led to the groundbreaking work of Vinton Cerf and Robert Kahn in the 1970s, who developed the TCP/IP model (Transmission Control Protocol/Internet Protocol). This suite of protocols provided the fundamental architecture for inter-network communication, with TCP handling reliable data transmission and IP responsible for addressing and routing packets.

The Standardization and Dominance of IPv4

IPv4 (Internet Protocol version 4) was formally defined in RFC 791 in September 1981 and quickly became the dominant protocol for internetworking. Its 32-bit addressing scheme, offering approximately 4.3 billion unique addresses, seemed more than adequate at the time. Key historical milestones that spurred its growth include:

• 1983: TCP/IP officially replaced NCP as the principal protocol suite for ARPANET. This is often considered the operational birth year of the internet as we conceptualize it today.
• Mid-1980s: The development and deployment of the Domain Name System (DNS), which translated human-friendly domain names into numerical IP addresses, greatly enhancing usability.
• Early 1990s: The creation of the World Wide Web by Tim Berners-Lee at CERN, which, through browsers like Mosaic, made the internet accessible and appealing to a global audience, triggering exponential growth.

The IPv4 Address Exhaustion Challenge and Mitigation Efforts

The unforeseen and explosive growth of the internet, driven by the web, email, personal computers, and later, mobile devices and "always-on" connections, led to an unprecedented demand for IP addresses. The impact of ARPANET on modern internet was profound, but its original address space design couldn't scale indefinitely. This "IPv4 address exhaustion" became a significant concern by the mid-1990s. Several key technologies were developed and deployed to mitigate this crisis and extend IPv4's lifespan:

• CIDR (Classless Inter-Domain Routing): Introduced in 1993 (RFC 1519), CIDR abandoned the rigid Class A, B, C address allocation system in favor of variable-length subnet masking (VLSM). This allowed ISPs and organizations to allocate IP address blocks more efficiently and in sizes more appropriate to their needs, significantly slowing down address depletion. You can explore CIDR with our CIDR Calculator.
• NAT (Network Address Translation): Widely adopted in the late 1990s, NAT (particularly NAT Overload or PAT) allows multiple devices within a private network (using RFC 1918 private IP addresses like those in the 192.168.x.x range) to share a single public IPv4 address to access the internet. NAT is a crucial technology that effectively multiplied the usability of the limited public IPv4 address pool.

The Long-Term Solution: IPv6 Development and Deployment

Recognizing that CIDR and NAT were ultimately temporary fixes for the fundamental issue of address space limitation, the Internet Engineering Task Force (IETF) began developing a next-generation Internet Protocol in the early 1990s. The result was IPv6 (Internet Protocol version 6), with its core specifications outlined in RFC 2460 (December 1998, later updated and obsoleted by RFC 8200 in 2017). IPv6's most notable feature is its 128-bit address space, providing a virtually inexhaustible supply of unique addresses (approximately 3.4 x 10³⁸). Other key improvements include a simplified packet header for more efficient router processing, integrated support for security through IPsec as a fundamental component, and enhanced mechanisms for autoconfiguration (like SLAAC) and mobility.

The evolution of IP addresses from IPv4 to IPv6 represents a critical upgrade to the internet's core infrastructure, designed to sustain its growth for many decades to come. The timeline of IPv6 deployment globally has been a gradual but steady process. For a long period, IPv4 and IPv6 have coexisted using various transition mechanisms like dual-stack (devices and networks running both protocols simultaneously), tunneling (encapsulating IPv6 packets within IPv4 packets to traverse IPv4-only networks, or vice-versa), and translation (like NAT64/DNS64, allowing IPv6-only clients to reach IPv4-only servers). Major Internet Service Providers, content delivery networks, mobile operators, and large enterprises have been increasingly deploying IPv6 to ensure the continued growth, innovation, and scalability of the internet. Keywords to explore further for this section include: timeline of ARPANET development milestones, key features of TCP/IP protocol suite origin, reasons for IPv4 address shortage and its impact, IPv6 design goals and improvements over IPv4.

Understanding IP – IPv4 and IPv6 Explained in Detail

The Internet Protocol (IP) is the cornerstone of network-layer communication in the TCP/IP suite. It's responsible for providing logical addresses to identify devices on a network and for encapsulating data into packets (also called datagrams) that are routed from a source host to a destination host across potentially multiple interconnected networks. Let's examine its two primary versions in depth.

IPv4 (Internet Protocol version 4)

Despite the rise of IPv6, IPv4 continues to be widely deployed and forms the basis of most internet traffic today. A comprehensive understanding of IPv4 is therefore non-negotiable for any networking professional.

IPv4 Address Structure, Dotted-Decimal Notation, and Binary Form

An IPv4 address is a 32-bit binary number. To make these addresses easier for humans to read, write, and remember, they are typically represented in dotted-decimal notation. In this format, the 32 bits are divided into four 8-bit segments called octets. Each octet is converted to its decimal equivalent (a number from 0 to 255) and these decimal numbers are separated by dots (periods).

• Example (Dotted-Decimal): 192.168.1.10
• Equivalent Binary Representation: For networking devices and calculations, the binary form is what matters. For the example above:

  11000000.10101000.00000001.00001010
  (Octet 1: 192 = 11000000)
  (Octet 2: 168 = 10101000)
  (Octet 3:   1 = 00000001)
  (Octet 4:  10 = 00001010)

This 32-bit structure allows for a theoretical maximum of 2³² or 4,294,967,296 unique addresses. The IP header of every IPv4 packet contains both the 32-bit source IP address and the 32-bit destination IP address, which are fundamental for routing decisions made by routers across the internet.

Network Portion, Host Portion, and the Role of the Subnet Mask

Every unicast IPv4 address (an address that identifies a single network interface) is logically divided into two main parts:

1. Network Portion (also known as Network ID or Network Address): The initial sequence of bits in the address that identifies the specific network or subnetwork to which a device belongs. All devices on the same logical network segment (e.g., a LAN or a specific subnet) share the same network portion in their IP address.
2. Host Portion (also known as Host ID or Host Address): The remaining sequence of bits in the address that uniquely identify a specific device (e.g., a computer, server, printer, router interface) within that particular network.

The critical element that distinguishes the network portion from the host portion is the subnet mask. A subnet mask is also a 32-bit number that is used in conjunction with an IP address. In its binary form, a subnet mask consists of a contiguous sequence of '1's (representing the bits that belong to the network portion) followed by a contiguous sequence of '0's (representing the bits that belong to the host portion).

• Example: Consider the IP address 192.168.1.100 with a common subnet mask of 255.255.255.0.
  • Subnet Mask in Dotted-Decimal: 255.255.255.0
  • Subnet Mask in Binary: 11111111.11111111.11111111.00000000
  • This mask indicates that the first 24 bits define the network portion (192.168.1) and the last 8 bits define the host portion (.100).

Network devices perform a bitwise AND operation between an IP address and its associated subnet mask to determine the Network ID (or network address) of that IP address. For example:

  IP Address:  11000000.10101000.00000001.01100100  (192.168.1.100)
Subnet Mask: 11111111.11111111.11111111.00000000  (255.255.255.0)
--------------------------------------------------------------------
Network ID:  11000000.10101000.00000001.00000000  (192.168.1.0)

The resulting Network ID (192.168.1.0 in this case) is essential for routing. When a device wants to send a packet, it compares the destination IP's Network ID (derived using its own subnet mask) with its own Network ID. If they match, the destination is on the local network, and the packet can be sent directly using Layer 2 (MAC) addressing. If they don't match, the packet is destined for a remote network and must be sent to the configured default gateway (a router) for further forwarding.

IPv4 Address Classes (Legacy Addressing Scheme and its Limitations)

Before the widespread adoption of Classless Inter-Domain Routing (CIDR), IPv4 addresses were categorized into five primary classes (A, B, C, D, and E). This "classful" addressing system was defined by the value of the first few bits of the first octet of the IP address, and it predetermined the default network/host boundary (i.e., the default subnet mask) and thus the potential size of the network.

Note: The range 0.x.x.x is reserved. The range 127.x.x.x is designated for loopback addresses (e.g., 127.0.0.1 for testing the local TCP/IP stack).

While CIDR has made classful addressing largely obsolete for address allocation and internet routing, understanding these classes is still important for historical context, some older networking equipment or software, and for quickly recognizing the default network sizes that were originally envisioned.

Public vs. Private IPv4 Addresses and Other Reserved Ranges

To help mitigate the rapid depletion of the globally unique IPv4 address space and to allow organizations to build internal networks without needing unique public addresses for every single device, specific ranges of IPv4 addresses were designated as private by RFC 1918. These private IP addresses are not routable on the public internet; internet routers are configured to drop (not forward) packets that have a source or destination IP address from these private ranges.

• Private IPv4 Address Ranges (as per RFC 1918):
  • 10.0.0.0 to 10.255.255.255 (This is a single /8 block: 10.0.0.0/8)
  • 172.16.0.0 to 172.31.255.255 (This encompasses 16 contiguous /16 blocks, often represented as 172.16.0.0/12)
  • 192.168.0.0 to 192.168.255.255 (This encompasses 256 contiguous /24 blocks, often represented as 192.168.0.0/16)
• These private ranges can be freely used by any individual or organization for their internal Local Area Networks (LANs). To allow devices using these private IPs to communicate with the internet, a device performing Network Address Translation (NAT), typically a router or firewall, is required at the network edge.
• All other IPv4 addresses not in these private ranges or other specifically reserved ranges are considered public IP addresses. These are globally unique and are assigned by Regional Internet Registries (RIRs) – such as ARIN (North America), RIPE NCC (Europe, Middle East, Central Asia), APNIC (Asia Pacific), LACNIC (Latin America and Caribbean), and AFRINIC (Africa) – usually through Internet Service Providers (ISPs).
• Other Notable Reserved IPv4 Ranges:
  • 0.0.0.0/8: Addresses in this block (0.0.0.0 to 0.255.255.255) refer to "This network." 0.0.0.0 is often used as a source address by a host during the bootstrap process (e.g., DHCP discovery) when it doesn't yet know its own IP.
  • 127.0.0.0/8: The loopback block (127.0.0.0 to 127.255.255.255), with 127.0.0.1 being the standard loopback address.
  • 169.254.0.0/16: This range (169.254.0.0 to 169.254.255.255) is reserved for Automatic Private IP Addressing (APIPA) or link-local addresses. If a device configured for DHCP cannot find a DHCP server, it may self-assign an IP address from this range. Devices using APIPA can only communicate with other APIPA devices on the same physical network segment.
  • 224.0.0.0/4: The Class D Multicast range (224.0.0.0 to 239.255.255.255).
  • 240.0.0.0/4: The Class E range (240.0.0.0 to 255.255.255.255), reserved for future or experimental use (excluding 255.255.255.255).
  • 255.255.255.255: The Limited Broadcast address. Packets sent to this address are delivered to all hosts on the local physical network segment but are not forwarded by routers.

Subnetting IPv4 Networks: Purpose and Process

What is a subnet? Subnetting is a fundamental technique in IPv4 networking that involves dividing a larger, single IP network block (like one of the original Class A, B, or C networks, or a CIDR block) into multiple smaller, interconnected, and logically separate sub-networks, known as subnets. This is achieved by "borrowing" bits from the host portion of the IP address and reassigning them to create a new identifier field: the subnet ID. This effectively extends the network portion of the address within the original network block, allowing for more granular network management.

Our IPv4 Subnet Calculator is specifically designed to help you visualize and compute the parameters of these subnets.

Why is Subnetting Necessary?

Subnetting offers several critical advantages in network design and management:

• Improved Network Organization & Management: Allows administrators to segment a large network into more manageable parts, often reflecting departmental structures (e.g., Sales, Marketing, Engineering), geographical locations (e.g., different floors or buildings), or specific functions (e.g., a subnet for servers, another for user workstations, another for guest Wi-Fi). This logical separation simplifies administration and policy enforcement.
• Reduced Broadcast Domain Size: Each subnet forms its own broadcast domain. Broadcast traffic (packets sent to all hosts within a network segment, such as ARP requests or DHCP discovery messages) is contained within its originating subnet and is not forwarded by routers to other subnets. By creating smaller subnets, the size of each broadcast domain is reduced, leading to significantly less overall network congestion and improved performance, as fewer devices are interrupted by irrelevant broadcast traffic.
• Enhanced Network Security: Segmentation through subnetting is a core security principle. It allows an organization to isolate different parts of its network. Routers and firewalls placed at the boundaries between subnets can then enforce access control policies (using Access Control Lists - ACLs), meticulously controlling which devices or subnets can communicate with each other and over which protocols/ports. This helps contain security breaches; if one subnet is compromised (e.g., a guest network), the attacker's ability to move laterally to other critical parts of the network (like a server farm) is significantly hindered.
• Efficient Use of IP Address Space: Subnetting, particularly when combined with Variable Length Subnet Masking (VLSM), allows for the allocation of IP address blocks that are appropriately sized for the actual needs of each individual sub-network. This minimizes the wastage of valuable IPv4 addresses. For example, a point-to-point WAN link between two routers only needs two usable IP addresses (typically a /30 subnet), while a user department LAN might need 100 addresses (requiring a /25 subnet). VLSM enables both of these to be carved out from a larger address block efficiently, rather than assigning an entire /24 (254 usable IPs) to the WAN link where most would be wasted.
• Control over Network Traffic Flow: Routers make forwarding decisions based on network addresses. Subnetting provides more distinct network addresses, allowing for more specific routing paths and better control over how traffic flows through an enterprise network, potentially improving performance and enabling traffic engineering.

The Subnetting Process (Borrowing Bits)

The core of subnetting involves modifying the subnet mask of the original network block. By extending the subnet mask (i.e., changing more '0's to '1's in the host portion of the mask, effectively making the prefix longer), you "borrow" bits from the original host portion to create a subnet ID field. The number of bits borrowed determines the number of subnets you can create and the number of hosts available within each new subnet.

For example, if you have a Class C network 192.168.1.0/24 (which has $N=24$ network bits and $H=8$ host bits, providing $2^8-2 = 254$ usable hosts), and you decide to borrow 3 bits for subnetting ($s=3$):

• You will create $2^3 = 8$ new subnets.
• The new network prefix length will be $N' = 24 + 3 = 27$ (so, /27).
• The new subnet mask will be 255.255.255.224 (binary: 11111111.11111111.11111111.11100000).
• Each subnet will have $H' = 8 - 3 = 5$ host bits remaining.
• Each subnet will have $2^5 - 2 = 32 - 2 = 30$ usable host addresses.

Key IPv4-Related Technologies In-Depth

Several critical technologies have been developed to manage and extend the functionality of IPv4 addressing.

• CIDR (Classless Inter-Domain Routing):

  Pronounced "cider," CIDR (defined in RFC 4632, which obsoletes earlier RFCs like 1518 and 1519) fundamentally changed how IPv4 addresses are allocated and routed by eliminating the rigid Class A, B, and C address boundaries. Instead, CIDR uses a prefix length notation (e.g., /24, /19, /8) appended to an IP address. The number after the slash indicates how many bits (from left to right, starting from the most significant bit) constitute the network portion of the address, with the remaining bits forming the host portion. This allows for:

  • Variable Length Subnet Masking (VLSM): A direct outcome of CIDR, VLSM allows a network space to be divided into subnets of different sizes. This means an organization can create small subnets for point-to-point links (e.g., /30, with 2 usable hosts), medium subnets for workgroups (e.g., /26, with 62 usable hosts), and larger subnets for server farms, all from the same initial address block. This optimizes address usage far better than fixed-size subnetting based on classful defaults. Learn more about VLSM here.
  • Route Aggregation (Supernetting): CIDR enables multiple contiguous smaller network blocks to be summarized or aggregated into a single, larger route advertisement by using a shorter prefix length. For example, sixteen /24 networks (e.g., 203.0.113.0/24 through 203.0.128.0/24) could potentially be aggregated and advertised as one /20 route (203.0.112.0/20, if they form a contiguous block). This significantly reduces the size of global internet routing tables and improves routing efficiency and stability.

  CIDR is indispensable for modern internet operations and efficient IP address management. Our CIDR Calculator can help you explore these blocks and their parameters.

• NAT (Network Address Translation):

  What is NAT in networking and how does it work? NAT (defined primarily in RFC 2663 and RFC 3022, with PAT in RFC 2663/3022) is a technology that allows multiple devices in a private network (using RFC 1918 private IP addresses like 10.x.x.x, 172.16.x.x-172.31.x.x, 192.168.x.x) to share a single public IPv4 address or a pool of public IPv4 addresses to communicate with the internet. It operates typically on a router or firewall at the edge of the private network.

  Process: When a device with a private IP sends a packet to an internet destination, the NAT device (e.g., home router) replaces the private source IP address in the packet header with its own public IP address. For outgoing connections, it usually also changes the source port number (this is PAT, see below) and keeps track of these translations (original private IP:port to translated public IP:new_port) in a NAT translation table. When a response packet returns from the internet to the public IP and new port, the NAT device consults its table to translate the public destination IP/port back to the original private IP/port and forwards it to the correct internal device.

  Types of NAT:

  • Static NAT (One-to-One NAT): A specific private IP address is permanently mapped to a specific public IP address. This is often used for internal servers (like a web server or email server) that need to be accessible from the internet using a consistent public IP.
  • Dynamic NAT: Maps private IP addresses to public IP addresses from a preconfigured pool of available public IPs. A private IP gets a public IP from the pool when it initiates an outbound connection. The mapping is temporary and the public IP is returned to the pool when the session ends or times out. The number of concurrent connections is limited by the size of the public IP pool.
  • PAT (Port Address Translation) or NAT Overload (NAPT - Network Address Port Translation): This is the most common type of NAT, especially in SOHO environments. It allows multiple private IP addresses to be mapped to a single public IP address by using different source port numbers for each distinct internal device's connection. Since a TCP/UDP connection is uniquely identified by the combination of (source IP, source port, destination IP, destination port, protocol), PAT can handle thousands of concurrent sessions through a single public IP by multiplexing them using different port numbers. Most home routers perform PAT.

  While NAT has been crucial for IPv4 address conservation and provides a basic level of security by hiding internal network structures, it can sometimes complicate certain applications that require end-to-end connectivity or embed IP address information within their data payload (e.g., some VPN protocols, older peer-to-peer applications, some VoIP protocols). Application Layer Gateways (ALGs) are sometimes implemented on NAT devices to inspect and modify such application traffic to allow it to work correctly through NAT.

• DHCP (Dynamic Host Configuration Protocol):

  DHCP (defined in RFC 2131) is an application-layer client/server protocol that enables automatic assignment and centralized management of IP addresses and other crucial network configuration parameters to client devices on a network. Without DHCP, network administrators would need to manually configure the IP address, subnet mask, default gateway address, and DNS server addresses on every single device, a process that is extremely time-consuming, error-prone, and inefficient for managing IP address allocation.

  lightbulbDORA Process

  The DHCP process is often remembered by the mnemonic DORA:

  1. Discover: Client broadcasts to find servers.
  2. Offer: Server(s) offer an IP lease.
  3. Request: Client requests a specific offer.
  4. Acknowledge: Server confirms the lease.

  DHCP leases are granted for a specific period. Before the lease expires, the client will typically attempt to renew it with the same DHCP server. This system allows for efficient reuse of IP addresses in dynamic network environments where devices frequently join and leave the network. Keywords: purpose of DHCP server in a local network, DHCP DORA process steps explained, DHCP lease duration and renewal process.

• APIPA (Automatic Private IP Addressing):

  APIPA is a feature in Microsoft Windows operating systems (and similar link-local auto-configuration mechanisms exist in other operating systems like macOS and Linux) that allows a DHCP client to automatically self-configure an IP address and subnet mask if it's configured to obtain an IP automatically but fails to contact a DHCP server on the network (e.g., the DHCP server is down or unreachable).

  If a device cannot obtain an address via DHCP, it will assign itself an IP address from the IANA-reserved link-local range: 169.254.0.0 to 169.254.255.255, along with the default Class B subnet mask of 255.255.0.0 (effectively a /16 network). Before using an APIPA address, the device typically performs an ARP check to ensure the chosen address is not already in use on the local segment.

  Devices using APIPA addresses can only communicate with other devices on the same physical network segment that are also using APIPA addresses from the same 169.254.x.x range. They cannot communicate with devices on other subnets or the internet because APIPA addresses are not routable and no default gateway or DNS server information is configured through this mechanism. It's primarily a fallback mechanism designed for very small, isolated LANs (e.g., ad-hoc connection between two computers) or as an indicator for troubleshooting DHCP client/server issues.

Keywords to research further: IPv4 vs IPv6 pros and cons for modern networks, understanding RFC 1918 private IP address ranges, subnetting example explained step by step with binary, how NAT overload (PAT) allows multiple devices to share one IP, common DHCP options and their purpose, troubleshooting APIPA address issues.

IPv6 (Internet Protocol version 6) in Detail

IPv6 is the next-generation Internet Protocol, designed by the Internet Engineering Task Force (IETF) to succeed IPv4 and, most critically, to address its limitation of a rapidly depleting address space. Beyond just providing more addresses, IPv6 incorporates several architectural improvements in areas like addressing, configuration, security, and routing efficiency, aiming to support the internet's continued growth and the proliferation of new connected devices and services.

IPv6 Address Structure, Bit Length, and Textual Representation

The most striking and fundamental difference between IPv4 and IPv6 is the size of the address itself:

• Bit Length: An IPv6 address is 128 bits long, a fourfold increase from IPv4's 32 bits. This expansion yields an astronomical number of possible unique addresses: 2¹²⁸, which is approximately 340 undecillion (or 3.4 x 10³⁸) addresses. This immense pool is designed to accommodate the projected growth of internet-connected devices for many decades, including the billions of devices anticipated for the Internet of Things (IoT).
• Hexadecimal Notation: Unlike IPv4's dotted-decimal notation, IPv6 addresses are written as eight groups (also known as hextets or, less commonly, quibbles) of four hexadecimal digits. Each hextet represents 16 bits of the address. These groups are separated by colons (:). Hexadecimal digits include the numbers 0-9 and the letters A-F (which can be written in uppercase or lowercase, though lowercase is conventional).
  • Full Unabbreviated Example: 2001:0DB8:85A3:0000:0000:8A2E:0370:7334

Compression Rules for IPv6 Address Brevity: Given the length of full IPv6 addresses, two important rules are defined to shorten their textual representation, making them more manageable for humans:

1. Omission of Leading Zeros: Within any 16-bit hextet, leading zeros can be omitted. However, each hextet must retain at least one digit (unless it's part of a larger block of zeros being compressed by the double colon rule).
   • Example: 0DB8 can be written as DB8.
   • Example: 0000 can be written as 0.
   • Example: 0370 can be written as 370.
   • Applying this to the full example: 2001:0DB8:85A3:0000:0000:8A2E:0370:7334 becomes 2001:DB8:85A3:0:0:8A2E:370:7334.
2. Double Colon (::) for Consecutive Zero Hextets: One (and only one) sequence of consecutive all-zero hextets (16-bit blocks of all zeros) within an address can be replaced by a double colon "::". This rule can significantly shorten addresses that contain long strings of zeros.
   warningImportant Rule

   The double colon (::) can only be used once in an IPv6 address to avoid ambiguity.

   • Example: 2001:DB8:0000:0000:1234:0000:0000:0001 can be compressed to 2001:DB8::1234:0:0:1 (if the first string of zeros is chosen) or 2001:DB8:0:0:1234::1 (if the second string is chosen). Typically, the longest sequence of zeros is compressed. If there are multiple sequences of the same longest length, often the first one encountered is compressed.
   • Example: 2001:0DB8:85A3:0000:0000:8A2E:0370:7334 (which became 2001:DB8:85A3:0:0:8A2E:370:7334) can be further compressed to 2001:DB8:85A3::8A2E:370:7334 by replacing the :0:0: sequence.
   • The loopback address, 0000:0000:0000:0000:0000:0000:0000:0001, compresses to ::1.
   • The unspecified address, 0000:0000:0000:0000:0000:0000:0000:0000, compresses to ::.
   It's crucial to remember that the double colon (::) can only be used once in an address. Using it multiple times would create ambiguity, making it impossible to determine the exact number of zero hextets that each "::" represents.

IPv6 Prefix Notation (CIDR for IPv6)

Just like IPv4, IPv6 uses Classless Inter-Domain Routing (CIDR) notation to define the network portion of an address. A slash (/) followed by a decimal number indicates the length of the network prefix in bits (from 0 to 128).

• Example: 2001:0DB8:ACAD:0001::/64. This notation signifies that the first 64 bits (2001:0DB8:ACAD:0001) represent the network prefix or subnet ID. The remaining 64 bits (128 - 64 = 64 bits) are available for the Interface Identifier (host portion) within that subnet.
• Common Prefix Lengths:
  • /32 or /48: Often allocated by Regional Internet Registries (RIRs) to large organizations or ISPs. An organization receiving a /48 can then create 2^(64-48) = 2¹⁶ = 65,536 individual /64 subnets.
  • /56: Sometimes allocated to smaller sites or residential customers, allowing for 2^(64-56) = 2⁸ = 256 /64 subnets.
  • /64: The standard prefix length for a single LAN segment or subnet. This provides 2⁶⁴ addresses for hosts on that subnet, which is an immense number, simplifying address planning within a LAN.
  • /127: Used for point-to-point links between routers, providing exactly two usable addresses (one for each end of the link).
  • /128: Represents a single host address or a loopback address.

Our IPv6 Subnet Calculator is designed to help you work with these addresses and prefix lengths to determine network ranges and other parameters.

Key Features and Benefits of IPv6 Over IPv4

Beyond the massively expanded address space, IPv6 introduces several key features and improvements:

• Simplified Header Format: The IPv6 header is 40 bytes in fixed length, which is simpler and more streamlined than the variable-length IPv4 header (20 bytes base + options). Some IPv4 header fields have been removed or made optional by moving them to "Extension Headers" that are only processed if present. This fixed-length, simpler header allows for more efficient packet processing by routers, potentially reducing latency and improving throughput.
• End-to-End Connectivity & Reduced Need for NAT: With a public IPv6 address potentially available for every device, the widespread need for Network Address Translation (NAT)—a common practice in IPv4 to conserve addresses—is greatly diminished. This can restore true end-to-end connectivity, simplifying application development, especially for peer-to-peer services, VoIP, and online gaming. However, NAT64 (Network Address Translation from IPv6 to IPv4) still exists as a transition mechanism.
• Stateless Address Autoconfiguration (SLAAC): Understanding SLAAC IPv6 is important. IPv6 devices can automatically configure their own global unicast addresses without requiring a DHCP server. They listen for Router Advertisement (RA) messages from local routers, which provide the network prefix (/64). The device then typically combines this prefix with an Interface Identifier (IID) that it generates itself, often based on its MAC address (using the EUI-64 format process, which involves inserting FFFE into the middle of the MAC address and flipping the 7th bit).
• DHCPv6 (DHCP for IPv6): While SLAAC handles address assignment, DHCPv6 (RFC 8415) is also available and offers more centralized control. It can operate in:
  • Stateful mode: Assigns addresses and other configuration parameters (like DNS servers, domain name), similar to DHCP for IPv4.
  • Stateless mode: Does not assign IP addresses (SLAAC handles this) but provides other configuration information that SLAAC doesn't, such as DNS server addresses and NTP server addresses.
• Mandatory Security Support (IPsec Integration): While the *use* of IPsec (Internet Protocol Security) is not always enforced in every IPv6 deployment, the IPv6 protocol suite *mandates the availability* of IPsec features. This means IPv6 implementations must be capable of supporting Authentication Header (AH) for data integrity and authentication, and Encapsulating Security Payload (ESP) for confidentiality (encryption), data integrity, and authentication. This provides a built-in framework for secure communication at the IP layer.
• Improved Support for Mobility (Mobile IPv6): Mobile IPv6 (MIPv6) allows an IPv6 node (like a smartphone or laptop) to change its point of attachment to the internet (i.e., move between different networks) while retaining its primary "home" IP address. This ensures continuous connectivity and session persistence for mobile users and devices without complex tunneling or NAT traversal issues sometimes seen with Mobile IPv4.
• Elimination of Broadcasts and ARP:
  • IPv6 does not use broadcast messages in the same way as IPv4 (which can cause "broadcast storms" in large Layer 2 domains). Instead, it employs more efficient multicast for sending a packet to multiple interested destinations simultaneously (e.g., discovering services, group communication).
  • Address Resolution Protocol (ARP), used in IPv4 to map IP addresses to MAC addresses on a local link, is replaced in IPv6 by functions within the Neighbor Discovery Protocol (NDP). NDP (RFC 4861) uses ICMPv6 messages for various functions, including address resolution (via Neighbor Solicitation and Neighbor Advertisement messages), router discovery, duplicate address detection (DAD), and redirect messages.
• Enhanced Quality of Service (QoS) Support: The IPv6 header includes a 20-bit "Flow Label" field. This field can be used by a source to label sequences of packets (a "flow") for which it requests special handling by IPv6 routers, such as non-default quality of service or real-time service (e.g., for VoIP or video streaming). This allows for more granular traffic differentiation and prioritization.

Keywords relevant to this section include: IPv4 vs IPv6 differences chart advantages, benefits of IPv6 for Internet of Things (IoT), IPv6 header format simplification, what is IPsec in relation to IPv6 security, Mobile IPv6 functionality explained, understanding SLAAC vs DHCPv6.

IPv6 Address Types and Their Scopes

IPv6 defines several types of addresses, categorized by their intended use and scope of reachability. The main categories are Unicast, Multicast, and Anycast.

Understanding these different address types and their intended scopes is crucial for proper IPv6 network design, configuration, and troubleshooting. Keywords for further study: IPv6 global unicast address allocation examples, purpose and generation of IPv6 link local addresses, when to use unique local addresses ULA in IPv6, IPv6 multicast address scope identifiers, how anycast addressing works in IPv6 networks.

OSI Model and TCP/IP Stack – Networking Architecture Explained

To effectively manage the immense complexity of network communication, which involves a multitude of diverse hardware devices and software protocols working in concert, layered architectural models were developed. These models deconstruct the entire communication process into a series of distinct, manageable layers. Each layer is designed to perform a specific set of functions, providing services to the layer directly above it and relying on services from the layer directly below. This layered approach fosters modularity (changes in one layer don't necessarily affect others), standardization (promoting interoperability between different vendors' equipment), and simplifies both teaching and troubleshooting network issues. The two most influential and referenced models in computer networking are the OSI (Open Systems Interconnection) model and the TCP/IP (Transmission Control Protocol/Internet Protocol) stack.

The OSI Model in Detail: A 7-Layer Conceptual Framework

The OSI model was developed by the International Organization for Standardization (ISO) and was first published in 1984 (ISO 7498). It is a conceptual framework that standardizes the functions of a telecommunication or computing system in terms of seven abstraction layers. While it's not directly implemented as a rigid protocol suite in most modern networks (the TCP/IP suite is the practical standard for the internet), the OSI model serves as an invaluable and universally recognized reference for understanding network operations, for categorizing and discussing network protocols, for designing new network architectures, and for systematically troubleshooting network problems by isolating issues to specific functional layers.

Here are the seven layers of the OSI model, typically described from the bottom (Layer 1, closest to the physical medium) to the top (Layer 7, closest to the end-user application):

1. Layer 1: Physical Layer
   • Primary Function: This layer is responsible for the actual transmission and reception of raw, unstructured data bits over a physical communication medium. It defines all the electrical, mechanical, procedural, and functional specifications required to activate, maintain, and deactivate the physical link between end systems. Essentially, its job is to get individual bits from one node to the next across the wire, fiber, or airwaves.
   • Key Responsibilities:
     • Defining voltage levels, current levels, data rates (bits per second), maximum transmission distances.

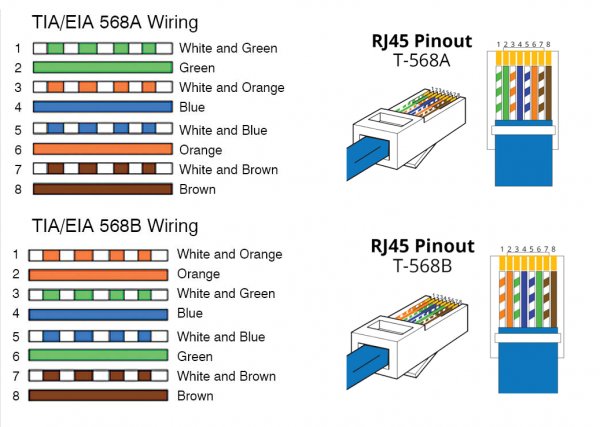

     • Specifying physical connector types (e.g., RJ45 for Ethernet, SC/LC for fiber optic cables), cable specifications (e.g., UTP Cat6, singlemode fiber), and pinout configurations (like the T568A/B standards discussed in our Quick Tip section).
     • Signaling and encoding: How binary '1's and '0's are converted into electrical pulses, light signals, or radio waves suitable for the chosen medium (e.g., Manchester encoding, NRZ).
     • Transmission mode: Simplex (one-way), half-duplex (two-way, but not simultaneously), or full-duplex (two-way simultaneously).
     • Physical network topology (though the logical topology is often a Layer 2 concern): How devices are physically interconnected (e.g., bus, star, ring, mesh - primarily historical or specific use cases now).
   • Examples of Technologies & Standards: Ethernet cables (Cat5e, Cat6, Cat6a), fiber optic cables (singlemode, multimode), coaxial cables, Wi-Fi radio waves (IEEE 802.11 physical layer aspects like frequencies, modulation), Bluetooth physical layer, RS-232, USB physical interface, DSL modems, cable modems, Network Interface Card (NIC) transceivers, repeaters, and hubs (older devices that operate purely at Layer 1 by regenerating signals).
   • PDU (Protocol Data Unit): Bit (or sometimes Symbol, depending on the specific physical layer encoding scheme).
   • Keywords: Physical layer OSI model functions and devices list, ethernet cable categories and specifications, types of data transmission media in networking, RJ45 pinout standards T568A T568B.
2. Layer 2: Data Link Layer
   • Primary Function: Provides reliable point-to-point and point-to-multipoint data transfer across a single physical link (i.e., between two directly connected nodes or nodes on the same shared medium). It aims to make the physical link appear error-free to the Network Layer above it by organizing bits into frames and managing access to the physical medium.
   • Key Responsibilities:
     • Framing: Organizes the raw bits received from the Physical Layer into manageable data units called frames. It adds a header (containing source and destination physical addresses) and often a trailer (containing error detection information) to each frame.
     • Physical Addressing (MAC Addressing): Assigns a unique physical address, known as a MAC (Media Access Control) address, to each network interface card (NIC). This 48-bit address (e.g., 00:1A:2B:3C:4D:5E) is used for device identification and addressing on the local network segment. You can explore MAC address formats with our MAC Address Converter.
     • Error Detection: Implements mechanisms to detect errors that may have occurred during physical transmission. The most common method is adding a Frame Check Sequence (FCS), often using a Cyclic Redundancy Check (CRC), to the frame trailer. If errors are detected, the frame is typically discarded. Some Layer 2 protocols can also perform error correction, though this is less common in LAN technologies.
     • Flow Control: Manages the rate of data transmission between two directly connected nodes to prevent a fast sender from overwhelming a slow receiver on the same link.
     • Media Access Control (MAC - a sublayer of Layer 2): Defines the rules for how devices gain access to and share a common transmission medium. Examples include CSMA/CD (Carrier Sense Multiple Access with Collision Detection) for classic shared Ethernet, and CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance) for Wi-Fi.
     • Logical Link Control (LLC - another sublayer): Establishes and maintains logical links between communicating devices over a single physical link. It provides an interface to the Network Layer and can offer services like multiplexing protocols running over the Data Link Layer and (optionally) flow and error control.
   • Examples of Technologies & Protocols: Ethernet (IEEE 802.3 - including MAC addressing, framing, CSMA/CD), Wi-Fi (IEEE 802.11 - MAC layer aspects like CSMA/CA, framing), Point-to-Point Protocol (PPP), Frame Relay, ATM (Asynchronous Transfer Mode), HDLC (High-Level Data Link Control), ARP (Address Resolution Protocol - often considered to operate at the boundary of Layer 2 and Layer 3). Network Switches and Bridges are primary devices operating at this layer.
   • PDU: Frame.
   • Keywords: Data link layer OSI model protocols and their functions, MAC address vs IP address detailed explanation, function of a network switch in OSI model layers, error detection and correction techniques in data link layer, CSMA/CD and CSMA/CA explained.
3. Layer 3: Network Layer
   • Primary Function: Responsible for providing logical addressing (IP addresses), path determination, and routing of data packets across multiple interconnected networks (an internetwork, or the Internet itself). It enables end-to-end communication between hosts that may not be on the same local network segment.
   • Key Responsibilities:
     • Logical Addressing: Assigns unique logical addresses (e.g., IPv4 or IPv6 addresses) to hosts across the entire internetwork. These addresses are hierarchical and allow for efficient routing.
     • Routing: Determines the best path for packets to travel from the source network to the destination network through various intermediate routers. Routers operate at this layer, making forwarding decisions based on destination IP addresses and information stored in their routing tables (which are built by routing protocols).
     • Packet Forwarding: The process of moving packets from an incoming router interface to an appropriate outgoing interface based on the routing decisions.
     • Fragmentation and Reassembly (primarily IPv4): If a packet (datagram) is too large for a particular underlying network's Maximum Transmission Unit (MTU) along the path, the Network Layer can fragment it into smaller packets. These fragments are then reassembled at the destination Network Layer. IPv6 discourages in-path router fragmentation, placing this responsibility more on the end hosts (Path MTU Discovery).
     • Congestion Control (some aspects): Can play a role in managing network congestion by, for example, dropping packets if buffers are full or signaling congestion to higher layers (e.g., via ICMP).
   • Examples of Technologies & Protocols: IP (Internet Protocol - both IPv4 & IPv6) is the quintessential Network Layer protocol. Other important protocols include ICMP (Internet Control Message Protocol - for error reporting and diagnostics like ping and traceroute), IGMP (Internet Group Management Protocol - for managing IP multicast group memberships), and various routing protocols such as RIP (Routing Information Protocol), OSPF (Open Shortest Path First), EIGRP (Enhanced Interior Gateway Routing Protocol - Cisco proprietary), IS-IS (Intermediate System to Intermediate System), and BGP (Border Gateway Protocol - the core routing protocol of the Internet). Routers are the primary devices operating at this layer. Our subnetting tools (IPv4 Calculator, IPv6 Calculator, CIDR Calculator) are directly related to understanding addressing and network segmentation at this layer.
   • PDU: Packet (also commonly referred to as Datagram, especially in the context of IP).
   • Keywords: Which OSI layer does IP operate on? Answer: Network Layer., Network layer functions and protocols list for interviews, how routers work in OSI model explained, IP addressing and routing fundamentals, difference between routing and switching.
4. Layer 4: Transport Layer
   • Primary Function: Provides end-to-end communication services, establishing a logical connection between applications running on different hosts. It ensures that data is delivered reliably and in order (if required by the application using TCP) or simply delivered quickly without such guarantees (if using UDP). It acts as a crucial bridge between the application-specific upper layers and the network-agnostic lower layers (Network, Data Link, Physical).
   • Key Responsibilities:
     • Segmentation and Reassembly: Breaks down large data streams received from upper-layer applications into smaller, manageable units called segments (for TCP) or datagrams (for UDP) for transmission across the network. At the receiving end, it reassembles these units back into the original data stream for the destination application.
     • Port Addressing (Service Point Addressing): Uses port numbers (16-bit numbers, e.g., port 80 for HTTP, port 443 for HTTPS, port 25 for SMTP) to identify specific applications or services running on a host. This allows multiple applications on a single host to use the network concurrently, as each application is associated with a unique port number for a given IP address. Our Port Info tool lists many common ports.
     • Connection Control (for connection-oriented protocols like TCP): Establishes, maintains, and terminates logical connections between communicating applications. TCP's three-way handshake (SYN, SYN-ACK, ACK) is a classic example of connection establishment.
     • Reliable Data Delivery (primarily TCP): Ensures that data arrives at the destination without errors, in the correct sequence, and without loss or duplication. TCP achieves this using mechanisms like sequence numbers (to track segments and reorder them if they arrive out of sequence), acknowledgments (ACKs - to confirm receipt of segments), and retransmissions (of lost or corrupted segments).
     • Flow Control: Manages the rate of data transmission between two hosts to prevent a fast sender from overwhelming a slow receiver. TCP uses a sliding window mechanism for flow control.
     • Error Control (primarily TCP): Detects and sometimes corrects errors that may occur during transmission, often through checksums included in the segment header and by requesting retransmission of erroneous segments. UDP also has a checksum, but its use is optional in IPv4 and error handling is left to the application.
   • Examples of Technologies & Protocols: The two primary protocols at this layer are TCP (Transmission Control Protocol), which is connection-oriented and reliable, and UDP (User Datagram Protocol), which is connectionless and provides an unreliable ("best-effort") datagram service. Port numbers are a key concept at this layer.
   • PDU: Segment (for TCP) or Datagram (for UDP).
   • Keywords: Transport layer protocols TCP and UDP functions and differences, TCP vs UDP which is better for gaming/streaming, function of port numbers in computer networking, reliable data transfer mechanisms in OSI model, TCP sliding window flow control.
5. Layer 5: Session Layer
   • Primary Function: Responsible for establishing, managing, maintaining, and terminating communication sessions (persistent logical connections) between applications running on different hosts. A session provides the necessary context for an ongoing dialog between applications.
   • Key Responsibilities:
     • Dialog Control / Management: Determines which application can transmit data at any given time in a session (e.g., half-duplex where only one side transmits at a time, or full-duplex where both can transmit simultaneously).
     • Synchronization: Inserts checkpoints (synchronization points) into a data stream. If a session fails or is interrupted (e.g., due to a network error), it can potentially be resumed from the last successfully transmitted checkpoint rather than restarting the entire data transfer from the beginning. This is particularly useful for large file transfers or long-running transactions.
     • Session Establishment and Teardown: Manages the orderly setup of a communication channel between applications and its graceful termination when the communication is complete.
     • Token Management: In some session protocols, it controls which side of a dialog has the "right" (token) to perform a critical operation or transmit data, preventing conflicts.
   • Examples of Technologies & Protocols: NetBIOS (Network Basic Input/Output System - an older API that provides session services), PPTP (Point-to-Point Tunneling Protocol - for VPNs, operates at multiple layers including session management), RPC (Remote Procedure Call - allows a program on one computer to execute code on another), Sockets API (though an interface, functions like `connect()`, `listen()`, `accept()` provide session-like functionalities to applications), NFS (Network File System), SQL Session management. Many modern internet applications handle session management functionalities implicitly within the application layer itself or rely on TCP's connection management.
   • PDU: Data (or SPDU - Session Protocol Data Unit).
   • Keywords: Session layer OSI model functions and real world examples, dialog control and synchronization points in networking sessions, role of session layer in video conferencing.
6. Layer 6: Presentation Layer
   • Primary Function: Ensures that data sent by the application layer of one system is intelligible and usable by the application layer of another system, even if the two systems use different internal data representations or character sets. It acts as a data translator and formatter for the network.
   • Key Responsibilities:
     • Data Translation/Formatting & Syntax Conversion: Converts data from an application-specific format into a common, standardized network format for transmission, and vice-versa at the receiving end. This can include converting character codes (e.g., ASCII to EBCDIC, or between different Unicode encodings), handling differences in data structures, or managing byte ordering (big-endian vs. little-endian).
     • Data Encryption and Decryption: Provides data privacy and security by encrypting data before it's transmitted across the network and decrypting it upon receipt at the destination. Protocols like SSL/TLS (Secure Sockets Layer/Transport Layer Security) conceptually operate here to secure application data, although their implementation often spans multiple layers (particularly Session and Transport).
     • Data Compression and Decompression: Reduces the number of bits that need to be transmitted over the network, which can improve network efficiency and speed up data transfer. Common compression algorithms (e.g., gzip, LZW) can be applied at this layer.
   • Examples of Technologies & Standards: SSL/TLS (for encryption and secure communication), MIME (Multipurpose Internet Mail Extensions - used for formatting email messages and attachments with different content types), data representation formats like JPEG, GIF, PNG, TIFF for images, ASCII, EBCDIC for character encoding, data serialization formats like XML (Extensible Markup Language) or JSON (JavaScript Object Notation) when used for network exchange, and various data compression algorithms.
   • PDU: Data (or PPDU - Presentation Protocol Data Unit).
   • Keywords: Presentation layer responsibilities and protocols in OSI model, data encryption and decryption process in networking, data compression techniques and benefits OSI, character set conversion example.
7. Layer 7: Application Layer
   • Primary Function: Provides the direct interface for end-user applications and network services to access the network and exchange information. This is the layer closest to the user, and it contains the protocols that directly support application functionalities like web Browse, email, file transfer, remote access, and network management.
   • Key Responsibilities:
     • Identifying and establishing the availability of communication partners.
     • Determining if sufficient network resources are available for the requested communication.
     • Synchronizing communication between applications.
     • Handling application-specific issues such as data semantics, user authentication and authorization (though often aided by lower layers), and ensuring data privacy at the application level.
     • Providing common application services (e.g., file services, print services, directory services).
   • Examples of Technologies & Protocols: HTTP/HTTPS (for web Browse and web services), FTP/SFTP (File Transfer Protocol/Secure FTP), SMTP (Simple Mail Transfer Protocol - for sending email), POP3/IMAP (for retrieving email), DNS (Domain Name System - for resolving domain names to IP addresses), Telnet (remote terminal access - unsecure), SSH (Secure Shell - for secure remote access and tunneling), SNMP (Simple Network Management Protocol - for managing network devices), DHCP (Dynamic Host Configuration Protocol - for automatic IP configuration).
   • PDU: Data (or APDU - Application Protocol Data Unit).
   • Keywords: Application layer protocols and their functions with examples, how HTTP protocol works in detail, DNS protocol operation explained for beginners, difference between POP3 and IMAP email protocols.

Understanding these layers helps in diagnosing network problems by systematically checking functionality at each level.

The TCP/IP Stack (Internet Protocol Suite) - A Practical Model

While the OSI model provides a comprehensive, seven-layer conceptual framework, the TCP/IP model (often referred to as the Internet Protocol Suite) is the practical, implemented suite of communication protocols that forms the foundation of the internet and most modern private networks. It was developed by the U.S. Department of Defense Advanced Research Projects Agency (DARPA) in the 1970s, predating the OSI model. The TCP/IP model is more descriptive of the actual protocols used, rather than prescriptive of functions like OSI.

It is commonly described with four layers, though some interpretations (especially when comparing directly to OSI) might show five by splitting the lowest layer. Here's the widely accepted four-layer TCP/IP model:

1. Layer 1: Network Access Layer (also known as Link Layer or Network Interface Layer)
   • Function: This layer is concerned with the physical transmission of data bits over the network medium and how data is sent over a specific physical network. It encompasses the functionalities of both the Physical Layer (Layer 1) and the Data Link Layer (Layer 2) of the OSI model. It deals with all the hardware details of physically interfacing with the network medium (e.g., Ethernet, Wi-Fi) and placing data onto that medium.
   • Key Responsibilities:
     • Defining how bits are electrically, optically, or wirelessly signaled by hardware devices.
     • MAC (Media Access Control) addressing for local network segment identification.
     • Framing of data bits into understandable units for transmission.
     • Interfacing with the actual network hardware (Network Interface Cards - NICs, cables, wireless transceivers).
     • Error detection on the physical link.
   • Protocols/Standards: Ethernet (IEEE 802.3 suite, including MAC addressing and CSMA/CD), Wi-Fi (IEEE 802.11 suite, including MAC addressing and CSMA/CA), Token Ring (IEEE 802.5 - largely legacy), FDDI (Fiber Distributed Data Interface - legacy), PPP (Point-to-Point Protocol), Frame Relay, ATM. Device drivers for Network Interface Cards (NICs) also operate here. ARP (Address Resolution Protocol) is often considered to operate at the boundary of this layer and the Internet layer.
   • OSI Equivalence: Corresponds to a combination of OSI Layers 1 (Physical) and 2 (Data Link).
2. Layer 2: Internet Layer
   • Function: This layer is directly equivalent in function to the OSI model's Network Layer (Layer 3). Its primary responsibility is to permit hosts to inject packets into any network and have them travel independently to the destination, potentially across multiple different networks (forming an internetwork). It handles logical addressing (IP addresses), routing of packets, and packet fragmentation and reassembly if necessary.
   • Key Responsibilities:
     • Packet addressing and identification using IP addresses (both IPv4 and IPv6).
     • Routing packets from the source host to the destination host across one or more networks, selecting the best path based on routing protocols.
     • Fragmenting packets if they are too large for an underlying network's MTU and reassembling them at the destination.
   • Protocols: The core protocol at this layer is the IP (Internet Protocol - IPv4 & IPv6). Other important protocols that operate in conjunction with IP at this layer include ICMP (Internet Control Message Protocol) for error reporting and diagnostics, IGMP (Internet Group Management Protocol) for managing multicast group memberships, and routing protocols (though routing protocols themselves can be complex and span layers, their primary function is to build the routing tables used by IP).
   • OSI Equivalence: Corresponds to OSI Layer 3 (Network).
3. Layer 3: Transport Layer (also known as Host-to-Host Layer)
   • Function: This layer mirrors the functionalities of the OSI model's Transport Layer (Layer 4). It is responsible for providing end-to-end communication services between application processes running on different hosts. It establishes a logical connection (if needed) and manages data flow, ensuring data is delivered reliably and in order (if using TCP) or with less overhead and faster but without guarantees (if using UDP).
   • Key Responsibilities:
     • Segmenting application data into smaller units (segments for TCP, datagrams for UDP) for transmission and reassembling them at the destination.
     • Assigning port numbers to differentiate between multiple applications running on the same host (service point addressing).
     • Providing connection-oriented (TCP) or connectionless (UDP) services.
     • Ensuring data integrity through checksums.
     • Managing flow control (TCP) to prevent overwhelming the receiver.
     • Providing error control and retransmission (TCP) for reliable delivery.
   • Protocols: The two primary protocols at this layer are TCP (Transmission Control Protocol), which is connection-oriented and reliable, and UDP (User Datagram Protocol), which is connectionless and provides an unreliable ("best-effort") datagram service.
   • OSI Equivalence: Corresponds to OSI Layer 4 (Transport).
4. Layer 4: Application Layer
   • Function: This layer in the TCP/IP model effectively combines the functionalities of the OSI model's Session, Presentation, and Application Layers (Layers 5, 6, and 7). It provides protocols that user applications employ to exchange data over the network. It allows applications to access the services of the other layers and defines the protocols that applications use to communicate directly with each other.
   • Key Responsibilities:
     • Providing network services directly to end-user applications (e.g., web Browse, email, file transfer, remote login).
     • Handling data representation, encoding, and dialog control for applications (functions covered by OSI's Presentation and Session layers).
     • Managing communication between applications.
   • Protocols: A vast range of protocols operate at this layer, including HTTP/HTTPS (Web), FTP/SFTP (File Transfer), SMTP (Email sending), POP3/IMAP (Email retrieval), DNS (Domain Name System), Telnet (unsecure remote access), SSH (Secure Shell for secure remote access), SNMP (Simple Network Management Protocol), DHCP (Dynamic Host Configuration Protocol), NTP (Network Time Protocol), and many others.
   • OSI Equivalence: Corresponds to OSI Layers 5 (Session), 6 (Presentation), and 7 (Application).

Some literature might present a five-layer TCP/IP model by explicitly separating the Network Access Layer into a Physical Layer and a Data Link Layer, which makes its bottom two layers directly map to the OSI model's bottom two layers. However, the four-layer model is more common when discussing the TCP/IP suite as a whole. Keywords for this section include: TCP/IP model layers and their functions explained, Network Access Layer protocols in TCP/IP, Internet Layer vs OSI Network Layer differences, Transport Layer protocols in TCP/IP suite, Application Layer in TCP/IP and OSI.

Key Differences and Relationship: OSI Model vs. TCP/IP Stack

While both the OSI model and the TCP/IP stack serve to describe and organize the complex process of network communication through a layered approach, they have distinct origins, structures, and practical roles in the networking world:

• Origin and Primary Purpose:
  • OSI Model: Developed proactively by the International Organization for Standardization (ISO) as a prescriptive and comprehensive reference model. Its goal was to standardize the design of network systems to ensure interoperability between products from different vendors. It is more of a theoretical, educational, and design framework.
  • TCP/IP Model: Evolved more organically alongside the development of ARPANET and the internet. It is a descriptive model based on the actual suite of protocols (TCP, IP, UDP, etc.) that were implemented, tested, and proven to work effectively. It's the practical foundation of the internet.
• Number of Layers and Scope:
  • OSI Model: Features 7 distinct layers, each with well-defined functions. This provides a very granular view of the communication process.
  • TCP/IP Model: Typically described with 4 layers (Network Access, Internet, Transport, Application). The TCP/IP Application layer effectively combines the functions of the OSI Application, Presentation, and Session layers. Similarly, the TCP/IP Network Access layer combines the functions of OSI's Data Link and Physical layers.
• Protocol Dependence vs. Independence:
  • OSI Model: It is generally considered protocol-independent. It defines the functions that each layer *should* perform, but it does not mandate specific protocols for each layer (though examples are often cited to illustrate functionality).
  • TCP/IP Model: It is built around its core protocols (IP at the Internet Layer, TCP and UDP at the Transport Layer, etc.). The model primarily describes the roles and interactions of these specific protocols.
• Handling of Reliability:
  • OSI Model: The model allows for connection-oriented (reliable) and connectionless services to be implemented at both the Network layer and the Transport layer.
  • TCP/IP Model: The Internet Layer (IP) is inherently connectionless and provides an unreliable ("best-effort") datagram delivery service. Reliability (such as error detection, acknowledgments, and retransmissions) is primarily the responsibility of the Transport Layer, specifically handled by TCP. UDP, also at the transport layer, offers an unreliable, connectionless service.
• Usage and Implementation:
  • OSI Model: While highly influential conceptually, the full seven-layer OSI protocol stack has rarely been implemented directly in commercial products. Its main value today is as a universal reference model for teaching networking concepts, for comparing different network architectures, and as a framework for discussing protocol functions.
  • TCP/IP Model: Forms the de facto standard for the Internet and is used in virtually all modern computer networks, from small home LANs to global enterprise networks and the internet backbone.

In summary, the OSI model is a "tell me everything" detailed reference, while the TCP/IP model is a "show me how it works with these specific protocols" practical guide. Networking professionals often use the OSI model to discuss functions at different layers and then map those functions to the specific protocols and layers of the TCP/IP suite that are actually in use. Keywords: TCP/IP stack vs OSI model key differences and similarities chart, why OSI model is a reference model not an implementation, advantages and disadvantages of TCP/IP model compared to OSI.

Real-Life Mapping of Common Protocols to OSI and TCP/IP Layers

Visualizing where common networking protocols fit within these layered models is crucial for understanding their specific roles, how they interact, and how data is encapsulated and de-encapsulated during network communication.

Understanding this mapping helps in troubleshooting, as problems can often be isolated by determining which layer's functionality is failing. For instance, if you can ping an IP address (Network Layer works) but can't access a website (Application Layer issue), the problem likely lies in the upper layers or with the specific application protocol (like HTTP or DNS).

Key Networking Protocols Every Professional Should Know

Protocols are the established sets of rules, conventions, and data formats that govern how data is exchanged between communicating network devices. They define everything from how connections are established and terminated to how data is addressed, routed, segmented, and checked for errors. A solid grasp of the most common and critical networking protocols is fundamental for anyone working with or designing computer networks.

TCP (Transmission Control Protocol)

• Layer: Transport Layer (OSI Layer 4, TCP/IP Transport Layer).
• Primary Function: TCP provides reliable, connection-oriented, byte-stream communication services to applications. This means it ensures that data sent from one application process arrives intact, in the correct order, and without duplication at the destination application process. It is designed to handle the imperfections of the underlying network (like packet loss or out-of-order delivery from IP).
• Key Characteristics & Mechanisms:
  • Connection-Oriented: Before any application data can be exchanged, TCP establishes a logical connection between the source and destination hosts. This is achieved through a process called the three-way handshake:
    1. The client sends a segment with the SYN (Synchronize sequence numbers) flag set.
    2. The server responds with a segment with both SYN and ACK (Acknowledgment) flags set.
    3. The client responds with a segment with the ACK flag set, completing the connection.
    Similarly, TCP uses a defined process (often involving FIN - Finish flags) to gracefully terminate the connection.
  • Reliability and Ordered Data Delivery: TCP uses sequence numbers to track each byte of data sent and to ensure that data segments are delivered to the receiving application in the same order they were transmitted. The receiver sends acknowledgments (ACKs) back to the sender to confirm receipt of data. If an ACK is not received for a segment within a certain time (timeout), TCP assumes the segment was lost or corrupted and retransmits it.
  • Flow Control: TCP employs a sliding window mechanism for flow control. The receiver advertises a "receive window" size, indicating how much data it can currently buffer. The sender adjusts its transmission rate to avoid overwhelming the receiver's buffer. This window size can be dynamically adjusted based on network conditions and receiver capacity.
  • Congestion Control: TCP includes sophisticated algorithms to detect and respond to network congestion. When congestion is detected (e.g., through lost packets or increased round-trip times), TCP reduces its transmission rate (congestion window) to help alleviate the overload on the network. Algorithms like Slow Start, Congestion Avoidance, Fast Retransmit, and Fast Recovery are part of this.
  • Full-Duplex Communication: TCP allows data to be sent and received in both directions simultaneously over a single established connection.
  • Byte-Stream Service: TCP presents data to the application as a continuous stream of bytes, without preserving message boundaries imposed by the application.
• TCP Header: The TCP header is typically 20 bytes long (it can be longer if TCP options are present). Key fields in the header include:
  • Source Port (16 bits) and Destination Port (16 bits): Identify the sending and receiving application processes.
  • Sequence Number (32 bits): Identifies the first byte of data in the current segment.
  • Acknowledgment Number (32 bits): Indicates the next sequence number the receiver expects to receive.
  • Header Length (4 bits): Specifies the length of the TCP header in 32-bit words.
  • Flags (e.g., URG, ACK, PSH, RST, SYN, FIN - 6 bits): Control bits used for connection establishment, termination, and other control functions.
  • Window Size (16 bits): Used for flow control.
  • Checksum (16 bits): Used for error detection covering the TCP header, TCP data, and parts of the IP header (pseudo-header).
  • Urgent Pointer (16 bits): Indicates urgent data (rarely used).
  • Options (variable length): Can include options like Maximum Segment Size (MSS), window scaling, selective acknowledgments (SACK), and timestamps.
• Common Use Cases: TCP is used for applications where data integrity, reliability, and ordered delivery are paramount. Examples include:
  • Web Browse (HTTP/HTTPS)
  • Email (SMTP for sending, POP3 and IMAP for receiving)
  • File transfer (FTP, SFTP)
  • Secure remote access (SSH)
  • Database connections
  • Any application that cannot tolerate data loss or out-of-order packets.
• Keywords: TCP three-way handshake detailed steps and flags, TCP reliability mechanisms sequence numbers and acknowledgements, TCP flow control vs congestion control explained, when to choose TCP over UDP for an application, TCP header fields and their purpose.

UDP (User Datagram Protocol)

• Layer: Transport Layer (OSI Layer 4, TCP/IP Transport Layer).
• Primary Function: UDP provides a very basic, connectionless, unreliable datagram (packet) delivery service. It's often referred to as a "best-effort" delivery protocol because it doesn't guarantee that datagrams will arrive, arrive in order, or arrive without duplication. It offers minimal protocol overhead.
• Key Characteristics & Mechanisms:
  • Connectionless: Unlike TCP, UDP does not establish a connection (like a three-way handshake) before sending data. Each UDP datagram is treated as an independent unit and routed separately. This reduces setup latency.
  • Unreliable: UDP does not use sequence numbers to ensure ordered delivery, nor does it use acknowledgments to confirm receipt of datagrams. If a UDP datagram is lost in transit or arrives corrupted (though it has a checksum for integrity), UDP itself does not attempt to retransmit it. Any required reliability, error checking, or reordering must be handled by the application layer.
  • Low Overhead: The UDP header is very small, consisting of only 8 bytes. This minimal header size contributes to its speed and efficiency, as less protocol processing is required by hosts and routers.
  • Datagram-Oriented: Applications send data in discrete messages (datagrams), and UDP preserves these message boundaries when delivering data to the receiving application. This is in contrast to TCP, which provides a byte-stream service.
  • No Flow Control or Congestion Control: UDP does not have built-in mechanisms to manage the rate of data transmission (flow control) or to react to network congestion by slowing down. It will send datagrams as fast as the application provides them and the underlying network can carry them, which can sometimes lead to packet loss if the network or receiver is overwhelmed.
• UDP Header Fields (8 bytes total):
  • Source Port (16 bits): Identifies the port of the sending application (optional, can be set to zero if not needed for a reply).
  • Destination Port (16 bits): Identifies the port of the receiving application on the destination host.
  • Length (16 bits): Specifies the length of the UDP header plus the UDP data (payload) in bytes. The minimum length is 8 bytes (for a datagram with no data).
  • Checksum (16 bits): An optional field for error checking covering the UDP header, UDP data, and parts of the IP header (a pseudo-header). While optional for IPv4, it's practically always used. For IPv6, the UDP checksum is mandatory if the packet is not tunneled or if the source doesn't guarantee integrity.
• Common Use Cases: UDP is suitable for applications where speed, low latency, and minimal overhead are more critical than guaranteed delivery, or where occasional data loss is acceptable, or where the application layer implements its own reliability mechanisms. Examples include:
  • DNS (Domain Name System): Most DNS queries and responses are small and use UDP for fast lookups.
  • DHCP (Dynamic Host Configuration Protocol): Uses UDP for client/server communication during IP address assignment.
  • VoIP (Voice over IP) and Real-time Video Streaming: In these applications, retransmitting lost packets would introduce unacceptable delays (jitter), making the stream unusable. It's often better to drop a packet and move on. Application-level codecs may handle some error concealment.
  • Online Gaming: Fast-paced multiplayer games often use UDP for transmitting game state information where timely delivery is more important than perfect reliability for every packet.
  • TFTP (Trivial File Transfer Protocol): A simple file transfer protocol that uses UDP (and has its own simple acknowledgment scheme).
  • SNMP (Simple Network Management Protocol): Often uses UDP for sending network monitoring data and traps.
  • RTP (Real-time Transport Protocol): Often runs over UDP to carry audio and video streams.
• Keywords: UDP vs TCP detailed comparison and when to use each, UDP header format and fields explained, list of applications that use UDP protocol, why is UDP considered unreliable but fast, UDP checksum calculation IPv4 IPv6.

IP (Internet Protocol) - The Network's Navigator

• Layer: Network Layer (OSI Layer 3, TCP/IP Internet Layer).
• Primary Function (Recap): As extensively detailed in the "Understanding IP – IPv4 and IPv6 Explained in Detail" section, the Internet Protocol is responsible for two core functions:
  1. Logical Addressing: Assigning unique IP addresses (either IPv4 or IPv6) to devices (hosts and network interfaces) to identify them on a network and across interconnected networks (the internet).
  2. Routing: Moving packets of data (datagrams) from a source host to a destination host across one or more networks. Routers use the destination IP address in the packet header to make forwarding decisions.
• Key Characteristics: IP is a connectionless protocol, meaning each packet is treated independently without any prior setup of a connection between source and destination. It also provides an unreliable or "best-effort" delivery service; it does not guarantee that packets will arrive, that they will arrive in order, or that they will arrive without errors or duplication. These reliability functions are typically handled by upper-layer protocols like TCP if required by the application.
• Versions: IPv4 (32-bit addresses) and IPv6 (128-bit addresses).
• Use Cases: IP is the fundamental protocol that underpins virtually all communication on the internet and most private TCP/IP networks. All other protocols in the TCP/IP suite (such as TCP, UDP, ICMP) and nearly all application protocols (like HTTP, DNS, FTP, SMTP) rely on IP for delivering their data across networks.

ICMP (Internet Control Message Protocol)

• Layer: Network Layer (OSI Layer 3, TCP/IP Internet Layer). ICMP operates as an integral part of the IP suite, and its messages are encapsulated within IP datagrams.
• Primary Function: ICMP is not typically used to exchange data between end-user applications. Instead, it is used by network devices, particularly routers and hosts, to send error messages and operational information related to the processing of IP packets. It provides feedback about problems in the communication environment.
• Key Characteristics & Mechanisms:
  • ICMP messages are generated when errors occur during IP packet forwarding (e.g., a destination host is unreachable, a packet's TTL expires) or for diagnostic purposes.
  • While IP itself is unreliable, ICMP provides a mechanism to report some of these unreliabilities.
  • ICMPv4 is used with IPv4, and ICMPv6 is used with IPv6. ICMPv6 is more extensive and incorporates functionalities previously handled by separate protocols in IPv4 (like ARP and IGMP, which are now part of Neighbor Discovery Protocol and Multicast Listener Discovery within ICMPv6).
• Common ICMPv4 Message Types (Examples):
  • Type 0: Echo Reply (Response to an Echo Request, used by ping).
  • Type 3: Destination Unreachable (Sent when a router or host cannot deliver a packet. Various codes specify the reason, e.g., Code 0: Network Unreachable; Code 1: Host Unreachable; Code 3: Port Unreachable).
  • Type 5: Redirect (Sent by a router to inform a host of a better first-hop router for a specific destination).
  • Type 8: Echo Request (Sent by the ping utility to solicit an Echo Reply).
  • Type 11: Time Exceeded (Sent by a router if a packet's Time-To-Live (TTL) field decrements to zero before reaching the destination, or if fragments of a packet do not arrive within a reassembly time limit. Used by traceroute).
  • Type 4: Source Quench (Historically used for basic congestion control, now deprecated).
  • Type 12: Parameter Problem (Indicates an issue with a field in the IP header).
• Use Cases:
  • Network Diagnostics: The ping utility uses ICMP Echo Request/Reply messages to test host reachability and measure network latency. The traceroute (or tracert) utility uses ICMP Time Exceeded and Destination Unreachable messages (or Echo Reply/Port Unreachable) to map the path packets take to a destination.
  • Error Reporting: Informing source hosts about problems encountered during packet delivery.
  • Path MTU Discovery (PMTUD): Can use ICMP "Packet Too Big" (an ICMPv6 message, or an IPv4 "Destination Unreachable - Fragmentation Needed and DF bit set" message) to determine the maximum transmission unit size along a path.
• Keywords: ICMP protocol purpose and common message types explained, how ping and traceroute use ICMP packets, ICMPv6 Neighbor Discovery Protocol functions, ICMP error reporting codes.

HTTP/HTTPS (Hypertext Transfer Protocol/Secure)

• Layer: Application Layer (OSI Layer 7, TCP/IP Application Layer).
• Primary Function: HTTP is the foundational protocol for data communication on the World Wide Web. It defines how messages (requests from clients like web browsers, and responses from web servers) are formatted and transmitted, and what actions web servers and browsers should take in response to various commands (methods). It operates on a client-server, request-response model.
  • A client (e.g., a web browser) initiates a connection and sends an HTTP request message to a web server (e.g., asking for an HTML page, an image, or other data).
  • The web server processes the request and sends back an HTTP response message containing the requested resource or an error message.
• HTTPS (HTTP Secure): Is essentially HTTP layered over an encrypted SSL/TLS (Secure Sockets Layer/Transport Layer Security) connection. SSL/TLS provides:
  • Confidentiality: Encrypts the data exchanged between the client and server, preventing eavesdropping.
  • Integrity: Ensures that the data has not been tampered with during transit using message authentication codes.
  • Authentication: Allows the client to verify the identity of the web server through digital certificates issued by Certificate Authorities (CAs). Optionally, servers can also authenticate clients.
  HTTPS is now the standard for all secure web communication, protecting sensitive information like login credentials, financial transactions, and personal data.
• Transport Protocol Used: HTTP and HTTPS almost exclusively use TCP as their underlying transport protocol (typically on port 80 for HTTP and port 443 for HTTPS). TCP's reliability is crucial for ensuring that web pages and other resources are delivered completely and correctly. (HTTP/3, an emerging standard, uses QUIC which runs over UDP).
• Common HTTP Methods (Request Verbs):
  • GET: Requests a representation of the specified resource (e.g., retrieve a web page). This is the most common method.
  • POST: Submits data to be processed to a specified resource, often causing a change in state or side effects on the server (e.g., submitting a web form, uploading a file).
  • PUT: Uploads a representation of the specified resource to the server, often replacing any existing representation.
  • DELETE: Deletes the specified resource.
  • HEAD: Similar to GET, but it only asks for the response headers and not the actual content (message body). Useful for checking if a resource exists or has been modified.
  • OPTIONS: Describes the communication options for the target resource.
  • CONNECT: Establishes a tunnel to the server identified by the target resource (used for HTTPS through HTTP proxies).
  • TRACE: Performs a message loop-back test along the path to the target resource (often disabled for security).
  • PATCH: Applies partial modifications to a resource.
• HTTP Status Codes: Three-digit codes returned by the server in the response to indicate the outcome of a client's request. They are grouped into classes:
  • 1xx (Informational): Request received, continuing process.
  • 2xx (Successful): The action was successfully received, understood, and accepted (e.g., 200 OK, 201 Created).
  • 3xx (Redirection): Further action must be taken to complete the request (e.g., 301 Moved Permanently, 302 Found, 304 Not Modified).
  • 4xx (Client Error): The request contains bad syntax or cannot be fulfilled (e.g., 400 Bad Request, 401 Unauthorized, 403 Forbidden, 404 Not Found).
  • 5xx (Server Error): The server failed to fulfill an apparently valid request (e.g., 500 Internal Server Error, 503 Service Unavailable).
• Use Cases: The backbone of the World Wide Web for accessing websites, web applications, web services (e.g., RESTful APIs, SOAP APIs), and streaming media.
• Keywords: how HTTP request response cycle works in detail, difference between HTTP and HTTPS encryption and ports, common HTTP methods and their usage, meaning of HTTP status codes 200 404 500, SSL/TLS handshake steps for HTTPS explained.

DNS (Domain Name System)

• Layer: Application Layer (OSI Layer 7, TCP/IP Application Layer). While it's an application layer protocol, its function is fundamental to nearly all network communication, acting as a critical directory service.
• Primary Function: DNS is a hierarchical and distributed naming system that translates human-friendly domain names (e.g., www.subnet-calculator.pro, mail.google.com) into numerical IP addresses (e.g., 198.51.100.44 for IPv4 or 2001:db8:85a3::8a2e:0370:7334 for IPv6) that computers use to locate each other on a network. It effectively acts as the "phonebook of the Internet." DNS can also perform reverse lookups (mapping an IP address back to a domain name, using PTR records) and store various other types of information related to domains through different record types (e.g., MX records for mail exchange servers, NS records for name servers, TXT records for arbitrary text often used for verification like SPF/DKIM, CNAME records for aliases, SRV records for service discovery).
• Transport Protocol Used:
  • Primarily uses UDP on port 53 for most standard queries and responses. UDP is preferred for its speed and low overhead, as DNS lookups are typically small and frequent.
  • Can also use TCP on port 53 for specific situations, such as when the DNS response data size exceeds 512 bytes (for traditional DNS, though EDNS allows larger UDP packets), for DNS zone transfers between DNS servers (which require reliable transfer of large amounts of data), or for DNS-over-TLS (DoT) and DNS-over-HTTPS (DoH) for enhanced security and privacy.
• How it Works (Simplified Hierarchical Query Process):
  1. When a user's application (e.g., a web browser) needs to resolve a domain name (e.g., to access a website), the operating system's DNS client (often called a resolver stub) is invoked.
  2. The client first checks its local DNS cache to see if it has recently resolved this domain name and if the cached record is still valid (based on its Time-To-Live or TTL value).
  3. If the name is not in the local cache or the entry has expired, the client queries a configured DNS resolver server (also known as a recursive DNS server). This server is typically provided by the user's Internet Service Provider (ISP) or can be a public DNS service like Google Public DNS (8.8.8.8, 8.8.4.4) or Cloudflare DNS (1.1.1.1, 1.0.0.1).
  4. The DNS resolver, if it doesn't have the information in its own cache, performs a series of queries (often recursive for the client, but iterative among servers) through the hierarchical DNS system:
     • It starts by querying one of the Root Name Servers (there are 13 globally distributed root server clusters). The Root Server doesn't know the IP address for the specific domain but knows where to find the authoritative servers for the Top-Level Domain (TLD) (e.g., .com, .org, .pro, .uk). It responds with the addresses of the TLD Name Servers.
     • The resolver then queries one of the TLD Name Servers for the specific TLD. The TLD server, in turn, doesn't have the IP for the full domain but knows which name servers are authoritative for that second-level domain (e.g., for subnet-calculator.pro within the .pro TLD). It responds with the addresses of these Authoritative Name Servers.
     • Finally, the resolver queries one of the Authoritative Name Servers for the target domain. The authoritative server holds the actual DNS records for that domain and provides the IP address (or other requested record type) for the specific hostname (e.g., www in www.subnet-calculator.pro).
  5. The DNS resolver receives the IP address, caches the result for a period specified by the record's TTL (to speed up future requests for the same domain), and returns the IP address to the client operating system.
  6. The client OS then provides the IP address to the application, which can now initiate a connection to the server at that IP address.
• Importance: DNS is a critical, foundational component of the internet infrastructure. Without it, users would have to memorize and type often-changing numerical IP addresses for every website and online service, making the internet virtually unusable for most people.
• Keywords: how DNS resolution works step-by-step with diagram, common DNS record types (A, AAAA, MX, CNAME, NS, TXT, SOA) and their purpose, DNS resolver vs authoritative name server differences, DNS caching mechanism and Time-To-Live (TTL) explained, recursive vs iterative DNS queries.

ARP (Address Resolution Protocol)

• Layer: ARP operates at the interface between the Data Link Layer (OSI Layer 2) and the Network Layer (OSI Layer 3). In the TCP/IP model, it's often considered part of the Internet Layer, but its function is to facilitate communication at the Network Access (Link) Layer.
• Primary Function: Used in IPv4 networks to resolve a known 32-bit IPv4 address to its corresponding 48-bit physical MAC (Media Access Control) address for communication on a local network segment (LAN). When a device (Host A) wants to send an IP packet to another device (Host B) that it believes is on the same local network, Host A knows Host B's IP address (e.g., from DNS resolution or static configuration). However, to actually transmit the data over the local medium (like Ethernet or Wi-Fi), Host A needs Host B's MAC address to create the Layer 2 frame that will encapsulate the IP packet. ARP provides this IP-to-MAC address mapping.
• How it Works:
  1. Host A first checks its local ARP cache. The ARP cache is a table stored in memory that maps recently resolved IP addresses to their corresponding MAC addresses on the local network.
  2. If the IP-to-MAC mapping for Host B is not found in Host A's ARP cache (or the entry has expired), Host A broadcasts an ARP Request message onto the local network segment. This ARP Request is encapsulated in a Layer 2 frame with the destination MAC address set to the broadcast MAC address (FF:FF:FF:FF:FF:FF). The ARP Request message essentially asks, "Who has the IP address [IP_address_of_Host_B]? Please tell [MAC_address_of_Host_A] and [IP_address_of_Host_A]."
  3. All devices on the local network segment receive and process this broadcasted ARP Request.
  4. Only Host B, recognizing its own IP address in the ARP Request's target IP address field, will process the request further.
  5. Host B sends an ARP Reply message directly (unicast) back to Host A. The ARP Reply contains Host B's MAC address. Host B also typically adds Host A's IP-to-MAC mapping to its own ARP cache from the information in the ARP Request.
  6. Host A receives the ARP Reply, updates its ARP cache with the IP-to-MAC mapping for Host B, and can now send the original IP packet by encapsulating it in a Layer 2 frame addressed to Host B's MAC address.
• ARP Cache: Devices maintain an ARP cache with dynamic entries (learned via ARP replies) which typically have a timeout period (e.g., a few minutes to a few hours, depending on the OS). Static ARP entries can also sometimes be manually configured for specific purposes, though this is less common.
• Security Note: ARP is a stateless protocol (it doesn't track the state of requests) and operates on trust within a local network. This makes it vulnerable to ARP spoofing (or ARP cache poisoning) attacks, where a malicious actor sends forged ARP messages onto a LAN to associate their MAC address with the IP address of another host (like the default gateway). This can allow the attacker to intercept, modify, or stop traffic intended for that IP address.
• IPv6 Equivalent: In IPv6 networks, ARP is replaced by the Neighbor Discovery Protocol (NDP), which is part of ICMPv6 (RFC 4861). NDP performs several functions, including address resolution (using Neighbor Solicitation and Neighbor Advertisement messages, analogous to ARP Request/Reply), router discovery, prefix discovery, duplicate address detection (DAD), and redirect messages.
• Use Cases: Essential for all IPv4 communication between devices within the same local network segment (e.g., an Ethernet LAN or a Wi-Fi LAN). It's how devices find each other's "physical" Layer 2 addresses to deliver IP packets locally.
• Keywords: ARP protocol explained for networking interviews, ARP request and reply packet structure example, how NDP in IPv6 replaces ARP functionality, ARP cache poisoning attack and mitigation, troubleshooting ARP issues.

Tools to Analyze, Trace, and Manage IP Networks

A variety of powerful tools are available to network administrators, engineers, cybersecurity professionals, and even curious end-users to diagnose connectivity issues, analyze network traffic flow, discover network topology, and assess the security posture of networks. Proficiency with these tools is a hallmark of a skilled networking professional, enabling them to effectively manage and troubleshoot IP networks.

Ping (Packet Internet Groper)

• Purpose: Ping is one of the most fundamental and widely used network diagnostic command-line utilities. Its primary purpose is to test the reachability of a host (any device with an IP address) on an IP network. It also measures the round-trip time (RTT) or latency for messages sent from the originating host to a destination computer and back.
• How it Works: The ping command sends ICMP (Internet Control Message Protocol) Echo Request packets to the specified target host (identified by its IP address or hostname). If the target host is reachable, online, and configured to respond to these requests (i.e., not blocked by a firewall), it replies with an ICMP Echo Reply packet. The output of the ping command typically shows:
  • Whether replies were received from the target host.
  • The RTT (latency) for each packet, usually displayed in milliseconds (ms).
  • The Time-To-Live (TTL) value of the received reply packet. The initial TTL value is set by the target host's OS, and it decrements with each router hop; a lower received TTL can give a rough indication of the number of hops.
  • A statistical summary, including the number of packets transmitted, received, and lost (packet loss percentage), as well as minimum, maximum, and average RTTs.
• Common Uses:
  • Verifying Basic Network Connectivity: The first step in troubleshooting network problems is often to ping the local default gateway, then a known external server (like a public DNS server, e.g., 8.8.8.8), and finally the target host.
  • Checking Host Availability: Quickly determine if a server, printer, or other network device is online and responding on the network.
  • Measuring Network Latency: Get a quick estimate of the delay in communication between two points on a network. High latency can indicate network congestion or routing issues.
  • Troubleshooting DNS Issues: Pinging a domain name (e.g., ping www.google.com) tests both DNS resolution (is the name correctly translated to an IP address?) and IP reachability to that address. If pinging by name fails but pinging by its IP address succeeds, it points to a DNS problem.
  • Identifying Packet Loss: If some ping packets are sent but not replied to, it indicates packet loss, which can be caused by network congestion, faulty network hardware (cables, switches, NICs), or misconfigured firewalls.
• Example Command (Cross-Platform):

  ping www.google.com
  ping 172.217.160.142  # Example IP for Google, may vary

  # Windows: send 10 echo requests
  ping -n 10 www.google.com

  # Linux/macOS: send 10 echo requests
  ping -c 10 www.google.com

• Keywords: how to use ping command for network troubleshooting, interpreting ping command output results and statistics, ping options and parameters for windows and linux, what is a good ping latency.

Traceroute (or Tracert on Windows)

• Purpose: To display the route (path) that IP packets take to reach a network host and to measure the transit delays (latency) at each hop along that path. It essentially identifies the sequence of routers (hops) that packets traverse from the source to the specified destination.
• How it Works: Traceroute cleverly utilizes the Time-To-Live (TTL) field in the IP header and ICMP "Time Exceeded" messages.
  1. Traceroute sends out a series of packets (typically three per hop for statistical purposes) towards the destination host. The first set of packets is sent with a TTL value of 1.
  2. When the first router in the path receives a packet with TTL=1, it decrements the TTL to 0. Since the TTL is now zero, the router discards the packet and sends an ICMP "Time Exceeded" message back to the source host (where traceroute is running). Traceroute records the IP address of this first router (from the source IP of the ICMP message) and measures the round-trip time (RTT) to it.
  3. Next, traceroute sends another set of packets, this time with a TTL value of 2. These packets will pass through the first router (which decrements TTL to 1) and reach the second router in the path. The second router decrements the TTL to 0, discards the packet, and sends back an ICMP "Time Exceeded" message. Traceroute records the IP and RTT for this second hop.
  4. This process continues, with traceroute incrementing the TTL value by one for each subsequent set of packets. This allows it to discover each router hop-by-hop along the path.
  5. When the packets finally reach the intended destination host (and the TTL is sufficient), the destination host's response depends on the type of probe packets traceroute sent:
     • If traceroute used ICMP Echo Request packets (common on Linux/macOS), the destination host typically responds with an ICMP "Echo Reply."
     • If traceroute sent UDP packets to a high, unlikely port number (common on Windows' tracert), the destination host's operating system usually responds with an ICMP "Destination Unreachable - Port Unreachable" message, as no application is listening on that specific UDP port.
     Either of these responses signals to traceroute that the destination has been reached, and the trace is complete.
  For each hop, traceroute usually displays the hop number, the IP address of the router (and its hostname if reverse DNS resolution is successful), and the RTTs for the probe packets sent to that hop. Asterisks (* * *) often indicate that no response was received from a particular hop within the timeout period, which could be due to a router configured not to send ICMP Time Exceeded messages, firewall blocking, or network congestion/packet loss.
• Common Uses:
  • Identifying Routing Loops: If the same router IP appears multiple times consecutively in the output.
  • Pinpointing Network Bottlenecks: Locating routers along a path that are causing significant increases in latency or packet loss.
  • Understanding Network Path: Visualizing the sequence of networks and routers that data traverses to reach a remote destination. This is invaluable for diagnosing performance issues with specific services or websites that might be related to intermediate network segments.
  • How to trace an IP address route to determine where connectivity might be failing beyond the local network.
• Example Command:

  # Linux/macOS
  traceroute www.google.com
  traceroute 8.8.8.8

  # Windows
  tracert www.google.com
  tracert 8.8.8.8

• Keywords: traceroute vs ping functionality, understanding traceroute output with asterisks, troubleshooting network connectivity path using traceroute, common traceroute options and their use.

Nslookup and Dig (DNS Lookup Utilities)

• Purpose: These command-line tools are essential for querying Domain Name System (DNS) servers to obtain various types of DNS records associated with domain names or IP addresses. They are used for DNS troubleshooting and information gathering.
• Nslookup (Name Server Lookup):
  • An older, widely available utility found on both Windows and most Unix-like operating systems (Linux, macOS).
  • It can operate in two modes:
    • Non-interactive mode: For single, quick lookups (e.g., nslookup www.example.com).
    • Interactive mode: Entered by typing nslookup alone. This provides a prompt (>) where you can issue multiple queries, change query types (e.g., set type=MX), or specify different DNS servers to query.
  • Example (Non-interactive, find A record): nslookup www.subnet-calculator.pro
  • Example (Interactive, query for Mail Exchange records):

    nslookup
    > set type=MX
    > google.com
    > exit

• Dig (Domain Information Groper):
  • A more flexible, powerful, and generally preferred DNS lookup utility, primarily found on Unix-like systems (Linux, macOS). While not included by default on Windows, versions are available or can be installed (e.g., as part of BIND tools).
  • Known for providing more detailed and structured output by default, including information about the query itself, the responding server, and flags.
  • Example (Find A record - IPv4 address): dig www.subnet-calculator.pro A
  • Example (Find AAAA record - IPv6 address): dig www.subnet-calculator.pro AAAA
  • Example (Find MX records for a domain): dig google.com MX
  • Example (Query a specific DNS server): dig @8.8.8.8 www.google.com (queries Google's public DNS server 8.8.8.8)
  • Example (Reverse DNS lookup - IP to hostname): dig -x 8.8.8.8
• Common Uses:
  • Verifying that a domain name resolves to the correct IP address(es).
  • Troubleshooting DNS configuration issues on a client machine or for a domain.
  • Querying for specific types of DNS records, including:
    • A: IPv4 address for a hostname.
    • AAAA: IPv6 address for a hostname.
    • MX: Mail Exchange records, indicating mail servers responsible for a domain.
    • CNAME: Canonical Name records, creating an alias from one domain name to another.
    • NS: Name Server records, listing the authoritative DNS servers for a domain.
    • TXT: Text records, used for various purposes like SPF (Sender Policy Framework) for email authentication, DKIM (DomainKeys Identified Mail), domain ownership verification, etc.
    • PTR: Pointer records, used for reverse DNS lookups (IP address to hostname).
    • SOA: Start of Authority record, containing administrative information about a DNS zone.
  • Identifying the authoritative DNS servers for a particular domain.
  • Checking DNS propagation after making changes to DNS records (though caching can affect immediate visibility).
• Keywords: nslookup command examples for windows and linux, dig command options and advanced usage tutorial, how to check different DNS record types using nslookup or dig, troubleshooting DNS resolution errors with command line tools, nslookup vs dig which is better.

Ipconfig / Ifconfig / IP Command (Network Interface Configuration)

• Purpose: These are fundamental command-line utilities used to display and, in some cases, manage the IP configuration settings of a computer's network interfaces (such as Ethernet adapters, Wi-Fi adapters, and virtual interfaces).
• Platform Specifics and Common Commands:
  • ipconfig (Windows):
    • ipconfig: Displays basic IP configuration information (IP Address, Subnet Mask, Default Gateway) for all active network adapters.
    • ipconfig /all: Displays the full TCP/IP configuration for all adapters. This is highly detailed and includes MAC (Physical) Address, DHCP server address, DNS server addresses, lease obtained and expiration times, and WINS server information if applicable.
    • ipconfig /release: Releases the current DHCP-assigned IP address configuration for all adapters (or a specific adapter if its name is provided, e.g., ipconfig /release "Ethernet").
    • ipconfig /renew: Renews the DHCP-assigned IP address configuration for all adapters (or a specific one). This forces the client to request a new lease from the DHCP server.
    • ipconfig /flushdns: Clears the contents of the local DNS resolver cache on the Windows client. This is very useful when DNS changes have been made and you want the machine to query DNS servers afresh instead of using potentially stale cached information.
    • ipconfig /displaydns: Shows the current contents of the local DNS resolver cache.
    • ipconfig /registerdns: Initiates manual dynamic registration for the DNS names and IP addresses configured on a computer.
  • ifconfig (Interface Configuration - Older Unix-like: Linux, macOS):
    • ifconfig: (Often run as /sbin/ifconfig or just ifconfig if in path) Displays configuration details for all active network interfaces (e.g., IP address, netmask, broadcast address, MAC address, RX/TX statistics).
    • ifconfig [interface_name] (e.g., ifconfig eth0, ifconfig en0): Displays configuration for a specific interface.
    • sudo ifconfig [interface_name] up / sudo ifconfig [interface_name] down: Enables or disables a specific network interface (requires superuser privileges).
    • sudo ifconfig [interface_name] [ip_address] netmask [subnet_mask] broadcast [broadcast_address]: Can be used to manually assign an IP address, subnet mask, and broadcast address to an interface. (This is less common for client machines, which typically use DHCP, and more for manual server configurations if not managed by network scripts or services).
    • Note: On many modern Linux distributions, ifconfig is considered deprecated and has been largely replaced by the more powerful ip command from the iproute2 package. However, it's still found on macOS and some older Linux systems, or can be installed via a `net-tools` package.
  • ip command (Modern Linux - from iproute2 package): This is the current standard and more versatile utility for network configuration on Linux systems.
    • ip address show (or its shorter aliases: ip a, ip addr): Displays IP addresses and detailed information about all network interfaces.
    • ip link show (or ip l): Displays link-layer information about network interfaces, such as MAC address, state (UP/DOWN), and MTU.
    • sudo ip link set [interface_name] up / sudo ip link set [interface_name] down: Enables or disables a specific network interface.
    • ip route show (or ip r): Displays the kernel's IP routing table.
    • sudo ip addr add [ip_address]/[prefix_length] dev [interface_name]: Adds an IP address (with CIDR prefix) to a specified interface.
    • sudo ip addr del [ip_address]/[prefix_length] dev [interface_name]: Deletes an IP address from an interface.
    • sudo ip route add default via [gateway_ip] dev [interface_name]: Adds a default route through a specified gateway and interface.
• Common Uses:
  • Verifying a computer's own local IP address, subnet mask, default gateway, and DNS server settings.
  • Identifying the MAC address (physical address) of network interfaces.
  • Troubleshooting local network connectivity issues (e.g., checking if an IP address has been assigned correctly by DHCP, if the default gateway is set).
  • Releasing and renewing an IP address from a DHCP server to resolve addressing conflicts or to obtain updated network settings.
  • Clearing the local DNS resolver cache (ipconfig /flushdns on Windows) to resolve issues with accessing websites that have had recent DNS changes.
  • Manually configuring network interfaces on servers or for specific testing scenarios (primarily with ifconfig or ip command on Linux/Unix).
• Keywords: ipconfig /all command explained output, ifconfig vs ip command for linux network configuration, how to check my ip address in command prompt cmd or terminal, linux network configuration commands ip addr, flushing DNS cache windows mac linux.

Wireshark (Network Protocol Analyzer)

• Purpose: Wireshark is the world's most popular (and arguably most powerful) open-source network protocol analyzer, often referred to as a "packet sniffer." It allows users to capture network traffic in real-time from a live network connection (Ethernet, Wi-Fi, Bluetooth, USB, etc.) or to read and analyze data from a previously captured file (e.g., .pcap, .pcapng formats).
• How it Works: Wireshark typically places a selected network interface into "promiscuous mode" (if supported by the hardware and driver, and with sufficient operating system permissions). In this mode, the interface captures all packets passing through that network segment, not just those addressed specifically to the capturing machine. Wireshark understands the structure of hundreds, if not thousands, of network protocols and meticulously dissects the captured packets, displaying their contents layer by layer (e.g., Ethernet frame, IP packet, TCP segment, HTTP message). It provides a rich graphical interface with multiple panes showing a summary list of packets, detailed dissection of a selected packet, and a hexadecimal/ASCII view of the raw packet data. Users can apply powerful capture filters (to limit what data is saved) and display filters (to narrow down and analyze specific traffic of interest from a larger capture).
• Common Uses:
  • Deep Network Troubleshooting: Diagnosing complex connectivity issues, intermittent network problems, application performance slowdowns, or unexpected network behavior by examining the actual packet exchanges between devices.
  • Network Protocol Analysis & Education: Learning how various network protocols (TCP, IP, UDP, DNS, HTTP, DHCP, ARP, ICMP, etc.) function at a granular level by observing their headers, fields, and interactions in real traffic.
  • Network Security Analysis: Detecting suspicious or malicious network activity (e.g., reconnaissance scans, malware communication, unauthorized access attempts), analyzing security breaches, and conducting network forensics by examining captured traffic for tell-tale signs.
  • Software and Application Development: Debugging network-aware applications by inspecting the traffic they generate and receive, ensuring they are communicating correctly according to protocol specifications.
  • Network Performance Measurement & Optimization: Analyzing network latencies, retransmissions, window scaling, and other TCP/IP metrics from packet captures to identify performance bottlenecks or areas for optimization.
• Important Considerations:
  • Capturing network traffic often requires administrative or root privileges on the system running Wireshark.
  • Be acutely mindful of privacy and legal regulations when capturing network traffic, especially on networks you do not own or for which you do not have explicit, written permission to monitor. Capturing unencrypted sensitive data (like passwords or personal information) can have serious ethical and legal implications.
• Keywords: Wireshark tutorial for beginners step by step, how to capture and analyze network packets using Wireshark, Wireshark display filters cheat sheet and examples, using Wireshark for network security analysis and troubleshooting, Wireshark pcap analysis.

Nmap (Network Mapper)

• Purpose: Nmap is a free, open-source, and exceptionally powerful utility for network discovery (host discovery) and security auditing (port scanning). System administrators, network engineers, and cybersecurity professionals use Nmap extensively to explore networks, identify which hosts are active, discover open ports and the services (application name and version) those hosts are offering, determine the operating systems (and OS versions) they are running, identify the type of packet filters/firewalls in use, and uncover a wealth of other characteristics about network devices.
• How it Works: Nmap operates by sending specially crafted packets to target hosts or networks and then meticulously analyzing the responses (or the lack thereof) to infer information. It employs a wide array of sophisticated scanning techniques, including:
  • Host Discovery (Ping Scans): Uses various methods (ICMP echo, TCP SYN/ACK to common ports, UDP probes) to determine which hosts are online on a target network.
  • Port Scanning Techniques: Offers numerous methods to identify open, closed, or filtered TCP and UDP ports on target hosts. Common scan types include TCP SYN scan (stealth scan), TCP connect scan, UDP scan, FIN scan, Xmas scan, Null scan, etc.
  • Service and Version Detection: Attempts to determine the specific application name and version number of services listening on open ports by probing them with protocol-specific queries.
  • Operating System (OS) Detection: Uses TCP/IP stack fingerprinting techniques to make an educated guess about the operating system and hardware characteristics of network devices.
  • Nmap Scripting Engine (NSE): A powerful feature that allows users to write (and use a vast library of pre-written) scripts to automate a wide variety of networking tasks. NSE scripts can perform more advanced discovery, vulnerability detection, exploitation (with caution), and other custom network interactions.
• Common Uses:
  • Creating a comprehensive network inventory or map of all connected devices.
  • Identifying open ports and running services on hosts, which is crucial for system hardening (closing unnecessary ports) and security assessments.
  • Verifying firewall rules and confirming that network segmentation policies are correctly implemented.
  • Performing operating system and service version detection to identify outdated or vulnerable software.
  • Conducting vulnerability scanning (often as a preliminary step in ***** testing or security audits) by leveraging NSE scripts.
  • Auditing the overall security posture of a network.
• Ethical and Legal Considerations: Nmap is an extremely potent tool that can be misused for malicious purposes if not handled responsibly. Always ensure you have explicit, written authorization before scanning any network or host that you do not own or have direct responsibility for managing. Unauthorized network scanning can be perceived as an attack, may violate acceptable use policies, and could lead to legal consequences or disciplinary action. Use Nmap ethically and responsibly.
• Keywords: Nmap commands cheat sheet for port scanning, types of Nmap scans and when to use them (SYN, UDP, FIN), using Nmap for OS and version detection, Nmap Scripting Engine (NSE) tutorial and scripts, ethical hacking with Nmap.

Packet Tracer / GNS3 / EVE-NG (Network Simulators/Emulators)

• Purpose: These are invaluable software tools that allow users to create, configure, experiment with, and troubleshoot virtual network environments. They are extensively used for learning networking concepts, practicing for industry certifications, designing and testing network topologies before deployment, and exploring different network technologies without the need for expensive physical hardware.
• Cisco Packet Tracer:
  • A visual network simulation tool developed and provided free of charge by the Cisco Networking Academy. It offers a user-friendly graphical interface to build network topologies by dragging and dropping simulated Cisco routers, switches, firewalls, wireless devices, servers, and end-user devices.
  • It's an excellent tool for beginners and those preparing for Cisco certifications like the CCNA. Users can practice configuring Cisco IOS commands, observe packet flow in simulation mode (visualizing how data moves through the network and how protocols interact), and understand fundamental network behaviors in a controlled environment.
• GNS3 (Graphical Network Simulator-3):
  • A powerful, open-source network software emulator. Unlike simulators that primarily mimic device behavior based on pre-programmed models, GNS3 allows users to run actual network operating system (NOS) images (e.g., Cisco IOS, Cisco NX-OS, Juniper JunOS, Arista EOS, FortiOS, pfSense) inside virtual machines (often integrating with QEMU, VirtualBox, or VMware Workstation/Player).
  • This provides a much more realistic and feature-rich lab experience, enabling users to work with the full command sets and capabilities of real network devices. GNS3 is highly suitable for more advanced studies (like CCNP or CCIE preparation) and for testing complex, multi-vendor network scenarios.
• EVE-NG (Emulated Virtual Environment Next Generation):
  • Another robust multi-vendor network emulation platform, popular among networking professionals and certification candidates for creating large and complex lab setups. It supports a very wide array of vendor NOS images and offers both a free community edition and a paid professional edition with more features. EVE-NG is often preferred for its ease of use in deploying many nodes and its browser-based interface.
• Common Uses:
  • Learning fundamental and advanced networking concepts, protocols, and device configuration in a practical, hands-on manner.
  • Preparing for industry certifications (CCNA, CCNP, JNCIA, etc.) by building lab scenarios that replicate exam topics and real-world configurations.
  • Designing, prototyping, and testing network topologies, routing schemes, security policies, and new features before implementing them in a live production environment.
  • Experimenting with different network technologies, vendor equipment (via emulation), and troubleshooting various network fault scenarios in a safe, isolated virtual setting without risk to operational networks.
• Keywords: Cisco Packet Tracer lab exercises for CCNA routing and switching, GNS3 vs Packet Tracer vs EVE-NG comparison for network labs, how to build complex multi-vendor labs in EVE-NG, best network simulation software for learning free.

Online Tools and Web-Based Resources

• Purpose: A vast array of web-based tools and resources provide quick access to network information, diagnostic utilities, and learning materials without requiring any software installation on the user's local machine.
• Examples:
  • IP Lookup & Geolocation Services: Websites like WhatIsMyIPAddress.com, IPInfo.io, MaxMind GeoIP, and many others allow you to quickly find out your current public IP address. They also provide services to look up information associated with any public IP address, such as its approximate geographic location (city, region, country), the Internet Service Provider (ISP) that owns the IP block, and the Autonomous System Number (ASN).
  • Online Port Scanners: Various websites (e.g., offered by Pentest-Tools, HackerTarget, T1Shopper, MXToolbox) provide interfaces to perform port scans against a publicly accessible IP address or hostname from an external server. This can help check for open ports and verify firewall rules from an outside perspective. (It is crucial to use these tools responsibly and only on systems you have explicit permission to scan).
  • Online Subnet Calculators: Numerous websites, including this one (Subnet-Calculator.Pro!), offer web-based interfaces for performing a wide range of IP addressing calculations, including IPv4 and IPv6 subnetting, CIDR block analysis, wildcard mask generation, and IP address conversions. These are convenient for quick calculations without needing dedicated software.
  • Internet Speed Test Sites: Popular services like Speedtest.net (by Ookla), Fast.com (by Netflix), or Google's integrated speed test allow you to measure your internet connection's current download speed, upload speed, latency (ping time to a test server), and sometimes jitter.
  • DNS Lookup Web Tools: Many websites (e.g., MXToolbox, Google Public DNS interface, Kloth.net) provide web-based forms for performing DNS queries, allowing you to look up various record types (A, AAAA, MX, CNAME, NS, TXT, SOA, etc.) for any domain.
  • Online Traceroute Tools: Some websites offer the ability to perform a traceroute to a specified destination from various server locations around the world, helping to diagnose routing issues from different network vantage points.
  • Browser Developer Tools: While not strictly "online tools," the developer tools built into modern web browsers (usually accessed by pressing F12) include a "Network" tab that is invaluable for inspecting HTTP/HTTPS requests and responses, headers, timings, and SSL certificate details when Browse websites.
• Common Uses:
  • Quickly checking your own public IP address and its perceived location.
  • Gathering publicly available information about a specific IP address or domain for reconnaissance or troubleshooting.
  • Performing basic external security checks (like identifying unexpectedly open ports) on your own internet-facing servers or services.
  • Conveniently performing IP subnet calculations, address conversions, or DNS lookups without needing to install local software.
  • Assessing your current internet connection performance and diagnosing speed or latency issues.
• Keywords: best online ip address lookup and geolocation tool, free online port scanner for external testing, how to test my internet speed and latency accurately online, web-based DNS lookup tools for all record types.

Real-World Applications of IP Networking

IP networking is not merely a collection of abstract protocols and technical standards; it is the practical and pervasive enabler of the digital age. Its applications are woven into the fabric of our daily lives, global commerce, critical infrastructure, and scientific advancement. Understanding these diverse applications underscores the profound impact and fundamental importance of a solid networking foundation.

The Internet and World Wide Web

This is perhaps the most expansive and universally recognized application of IP networking. The Internet is a global "network of networks"—a decentralized system of interconnected computer networks that use the Internet Protocol suite (TCP/IP) to communicate seamlessly between billions of devices worldwide. It facilitates an unprecedented exchange of information, services, and culture.

The World Wide Web (WWW), often used interchangeably with the Internet but technically distinct, is an information system of interlinked hypertext documents (web pages) and other multimedia resources (images, videos, audio files) that are accessed via the Internet. The Web relies entirely on IP networking to function. Key IP-related technologies that power the Internet and the Web include:

• IP Addressing (both IPv4 & IPv6): Provides unique global identifiers for every server hosting web content and every client device (computer, smartphone, tablet) accessing that content.
• DNS (Domain Name System): Translates human-friendly website names (Uniform Resource Locators - URLs, like https://subnet-calculator.pro) into the numerical IP addresses required for routing.
• HTTP/HTTPS (Hypertext Transfer Protocol/Secure): The application-layer protocols used by web browsers (clients) and web servers to request and deliver web pages, images, scripts, and other resources. HTTPS adds a vital layer of encryption for secure communication.
• TCP (Transmission Control Protocol): Provides the reliable, connection-oriented transport service for the vast majority of HTTP/HTTPS traffic, ensuring that web content is delivered completely and correctly.
• Routers and Routing Protocols (e.g., BGP for inter-domain routing, OSPF/IS-IS for intra-domain routing): These devices and protocols work together to direct internet traffic across vast distances and through myriad interconnected autonomous systems (networks) to ensure data packets reach their intended destinations efficiently.

Home and Small Office Networking (SOHO)

Most modern homes and small offices/home offices (SOHO environments) operate their own Local Area Networks (LANs), which are heavily reliant on IP networking for both internal communication and internet access. These networks typically involve a combination of wired (Ethernet) and wireless (Wi-Fi) technologies and key networking components:

• Broadband Routers (Consumer-grade): A typical home or SOHO router often serves as a multi-function device, acting as:
  • An internet gateway (connecting the LAN to the ISP via a built-in modem or an Ethernet WAN port).
  • A DHCP server (automatically assigning private IP addresses, like those in the 192.168.1.x range, to internal devices).
  • A NAT (Network Address Translation) device (allowing multiple internal devices to share a single public IP address provided by the ISP).
  • A basic firewall (providing some level of security against unsolicited incoming traffic).
  • A Wi-Fi Access Point (providing wireless connectivity).
  • An Ethernet switch (providing multiple wired Ethernet ports).
• Wi-Fi Access Points (WAPs): Enable wireless connectivity for a plethora of devices, including laptops, smartphones, tablets, smart TVs, gaming consoles, printers, and a growing array of smart home (IoT) devices.
• Ethernet Switches: Often integrated into routers but also available as standalone devices to expand the number of wired Ethernet ports for connecting desktop computers, NAS (Network Attached Storage) devices, printers, and other wired equipment.
• Connected Devices: Personal computers, gaming consoles, streaming media players, smart speakers, security cameras, smart lighting, thermostats, and various other smart home appliances all use IP to communicate with each other locally (e.g., for file sharing, local media streaming) and with services and resources on the internet.

A basic understanding of IP configuration (often handled by DHCP), Wi-Fi network setup and security (WPA2/WPA3), and troubleshooting common home network issues (like "no internet" or slow Wi-Fi) are increasingly valuable skills for many individuals, not just IT professionals.

Enterprise Networking

Businesses of all sizes, from small and medium-sized enterprises (SMEs) to large multinational corporations, depend critically on robust, scalable, secure, and high-performance IP networks to support their diverse and often mission-critical operations. Enterprise networks are typically significantly more complex and feature-rich than SOHO setups, and can include:

• Structured Cabling Systems: Professionally designed and installed physical network infrastructure using high-quality copper (Ethernet - Cat 6, Cat 6a, or higher) and fiber optic cabling to ensure reliability and support high bandwidth demands. Our Quick Tip on Cabling Standards provides some basic information on wiring.
• Advanced Switching Infrastructure: Enterprise-grade managed switches that support a wide array of features, including:
  • Virtual LANs (VLANs) for segmenting the network into multiple logical broadcast domains, improving security and organization.
  • Spanning Tree Protocol (STP) and its variants (RSTP, MSTP) for preventing Layer 2 loops in redundant switched topologies.
  • Quality of Service (QoS) mechanisms for prioritizing critical application traffic (e.g., voice, video, business applications) over less sensitive traffic.
  • Power over Ethernet (PoE, PoE+, PoE++) for powering devices like IP phones, wireless access points, and security cameras directly over Ethernet cables.
  • Link Aggregation (e.g., LACP) for bundling multiple physical links into a single logical link for increased bandwidth and redundancy.
• Complex Routing Architectures: Enterprise routers implementing dynamic routing protocols such as OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol - Cisco proprietary) for internal routing within an autonomous system, and BGP (Border Gateway Protocol) for connecting to multiple Internet Service Providers (ISPs) and exchanging routes with the global internet. Redundancy (e.g., HSRP, VRRP, GLBP for first-hop redundancy) and traffic engineering are key considerations.
• Comprehensive Network Security: A multi-layered security approach is essential, often including:
  • Next-Generation Firewalls (NGFWs) with advanced threat prevention capabilities (application awareness, intrusion prevention).
  • Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) to monitor for and block malicious activity.
  • Virtual Private Networks (VPNs) for secure site-to-site connectivity between branch offices and for secure remote access for employees (e.g., IPsec VPNs, SSL VPNs).
  • Network Access Control (NAC) solutions to enforce security policies on devices connecting to the network.
  • Robust network segmentation using VLANs and firewall policies.
• Enterprise Wireless Networks (WLANs): Centrally managed Wi-Fi solutions using wireless LAN controllers (WLCs) or cloud-managed APs, providing seamless roaming, robust security (e.g., WPA2/3-Enterprise with RADIUS/802.1X authentication), guest access portals, and tools for RF planning and troubleshooting.
• Data Centers (On-Premises or Co-located): Housing critical servers, storage systems (Storage Area Networks - SANs, Network Attached Storage - NAS), and high-speed, low-latency network infrastructure (e.g., 10GbE, 25GbE, 40GbE, 100GbE, often using technologies like VXLAN/EVPN for network virtualization and scalability) to run core business applications and store corporate data.
• Unified Communications (UC) and Collaboration: Integrating voice (VoIP), video conferencing, instant messaging, presence, and other collaboration tools over the IP network to enhance communication and productivity.
• Network Monitoring and Management Systems (NMS): Sophisticated tools and platforms (e.g., using SNMP, NetFlow, sFlow, telemetry) to proactively monitor network health, performance, availability, and utilization. These systems facilitate rapid troubleshooting, capacity planning, and security incident detection.

Effective IPv4 and IPv6 subnetting (our IPv4 and IPv6 calculators can be indispensable tools for this), VLAN design, robust security architectures, and increasingly, network automation, are paramount in modern enterprise environments.

Cloud Computing cloud

Cloud computing, in all its forms—Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Software as a Service (SaaS)—is fundamentally enabled and orchestrated by sophisticated IP networking. Massive data centers operated by cloud providers like Amazon Web Services (AWS), Microsoft Azure, and Google Cloud Platform (GCP) rely on complex network architectures to deliver scalable, resilient, and on-demand services globally.

• Virtual Private Clouds (VPCs) / Virtual Networks (VNets): These allow customers to create logically isolated sections within the public cloud, defining their own private IP address spaces (often using RFC 1918 addresses), subnets, route tables, and network gateways. This provides control and security comparable to an on-premises network. Our IPv4 Subnet Calculator can be invaluable for planning these VPC/VNet subnets. Effective VPC subnet design best practices are crucial for scalability and security.
• Software-Defined Networking (SDN): Extensively used in cloud data centers, SDN decouples the network control plane from the data plane, allowing for centralized, programmatic control and automation of network resources. This enables rapid provisioning, dynamic traffic management, and network function virtualization (NFV).
• Load Balancing: Cloud providers offer robust load balancing services that distribute incoming application traffic across multiple backend instances (virtual machines, containers, serverless functions) based on IP addresses, ports, and application-layer information. This enhances availability, scalability, and performance. Cloud load balancing explained involves understanding different types like Application Load Balancers and Network Load Balancers.
• Global Networks & Edge Locations: Major cloud providers operate vast global backbone networks interconnecting their regions and availability zones. They also utilize numerous edge locations worldwide for services like Content Delivery Networks (CDNs) and DNS resolution, bringing services closer to end-users to reduce latency.
• Hybrid Cloud Connectivity: IP networking facilitates hybrid cloud models, where organizations connect their on-premises data centers to cloud resources using secure VPN connections (IPsec VPNs) or dedicated, high-bandwidth private links (e.g., AWS Direct Connect, Azure ExpressRoute, Google Cloud Interconnect).

Managing IP in modern cloud networks requires understanding virtual networking constructs, cloud-specific networking services (like security groups vs. network ACLs), and often, how to integrate on-premises networks securely and efficiently with cloud resources.

IoT (Internet of Things) devices_otherwatchdirections_car

The Internet of Things refers to the ever-expanding network of physical devices, vehicles, home appliances, industrial sensors, wearables, and other items embedded with electronics, software, sensors, actuators, and connectivity which enables these objects to connect and exchange data over networks, often without direct human intervention. IP networking is a critical enabler for IoT, though it presents unique challenges regarding scale, power consumption, and security.

• Addressing Scale: With potentially billions or even trillions of IoT devices needing unique identifiers, IPv6's vast address space is often seen as essential for the long-term scalability of IoT, allowing each device to have a globally unique IP address. Many current IoT deployments still use IPv4 internally, often relying on gateways and NAT, but the benefits of IPv6 for IoT are compelling for future growth.
• Diverse Connectivity: IoT devices employ a wide range of communication technologies, including:
  • Short-range wireless: Wi-Fi, Bluetooth Low Energy (BLE), Zigbee, Z-Wave, Thread.
  • Long-range wireless (LPWANs - Low-Power Wide-Area Networks): LoRaWAN, Sigfox, NB-IoT (Narrowband IoT), LTE-M. These are designed for devices that need to transmit small amounts of data over long distances with very low power consumption. A LPWAN technologies comparison often highlights trade-offs in range, data rate, and battery life.
  These access technologies often connect to IoT gateways, which then use standard IP networking (Ethernet, Wi-Fi, cellular) to forward data to backend platforms or the cloud.
• Lightweight Protocols: Due to the often constrained nature of IoT devices (limited processing power, memory, and battery life), lightweight application-layer protocols are preferred for communication over IP. Examples include:
  • MQTT (Message Queuing Telemetry Transport): A publish/subscribe messaging protocol designed for low-bandwidth, high-latency, or unreliable networks. It's efficient and widely used in IoT.
  • CoAP (Constrained Application Protocol): A specialized web transfer protocol for use with constrained nodes and constrained (e.g., low-power, lossy) networks, designed to easily translate to HTTP for integration with the web. The MQTT vs CoAP for IoT discussion often revolves around specific use case requirements.
  • AMQP (Advanced Message Queuing Protocol), DDS (Data Distribution Service) are also used in certain IoT contexts.
• Network Management and Security: Managing and securing IoT devices on the network presents significant challenges, including secure device provisioning and onboarding, firmware updates over the air (FOTA), authentication and authorization, data encryption (in transit and at rest), and protection against botnets (like Mirai) that exploit vulnerable IoT devices.

How IP is used in IoT varies widely, from simple sensor data uploads (e.g., a smart thermostat reporting temperature) to complex command-and-control systems (e.g., industrial automation). The key is enabling these diverse devices to communicate effectively and securely within the broader internet ecosystem.

Cybersecurity security

IP networking knowledge is absolutely fundamental to virtually every aspect of cybersecurity. Protecting digital assets, detecting and analyzing threats, and responding to security incidents all require a deep and granular understanding of how networks operate at the protocol level.

• Firewalls: Network security devices (hardware appliances or software) that monitor and control incoming and outgoing network traffic based on a predefined set of security rules. Traditional firewalls filter traffic based on source/destination IP addresses, port numbers, and protocols (Stateful Packet Inspection - SPI). Next-Generation Firewalls (NGFWs) add application-layer awareness, intrusion prevention capabilities, and threat intelligence feeds. Understanding how firewalls use IP addresses and ports is critical for effective rule creation.
• Intrusion Detection/Prevention Systems (IDS/IPS): IDS solutions monitor network or system activities for malicious activities or policy violations and generate alerts. IPS solutions can also take active steps to block or prevent detected intrusions. Both rely heavily on analyzing IP traffic patterns, protocol behavior (protocol anomaly detection), and signatures of known attacks.
• Virtual Private Networks (VPNs): Create secure, encrypted tunnels over less secure public networks (like the internet) to protect data confidentiality, integrity, and provide secure remote access or site-to-site connectivity. Common VPN protocols explained include IPsec (often used for site-to-site VPNs) and SSL/TLS-based VPNs (e.g., OpenVPN, often used for client-to-site remote access).
• Network Segmentation: A core security best practice that involves dividing a network into smaller, isolated subnets or Virtual LANs (VLANs). This helps to limit the "blast radius" of a security breach – if one segment is compromised, the attacker's ability to move laterally to other critical parts of the network is significantly hindered. Proper subnetting and firewall rules between segments are key to effective network segmentation for security benefits.
• Network Forensics and Incident Response: Investigating security incidents almost invariably involves analyzing network logs (from firewalls, routers, servers, IDS/IPS), full packet captures (e.g., using Wireshark), and IP traffic flow data (e.g., NetFlow, sFlow, IPFIX) to reconstruct attack timelines, understand the attack vector, determine the scope of compromise, and identify the attacker's activities.
• Denial-of-Service (DoS) / Distributed Denial-of-Service (DDoS) Mitigation: Understanding IP traffic patterns, characteristics of legitimate vs. malicious traffic, source IP spoofing techniques, and protocol abuse (e.g., SYN floods, UDP floods, amplification attacks) is crucial for detecting and mitigating DoS/DDoS attacks, which aim to overwhelm a target service or network with excessive traffic.
• Endpoint Security and Network Interaction: While focused on individual devices (laptops, servers), endpoint detection and response (EDR) and extended detection and response (XDR) solutions often correlate endpoint activity with network events and rely on network connectivity for threat intelligence updates and centralized management.

Cybersecurity professionals across diverse roles—including security analysts, ***** testers, incident responders, security architects, and forensics investigators—must possess a robust understanding of IP, TCP, UDP, DNS, HTTP, and other common protocols to effectively defend networks, analyze threats, and respond to incidents. Keywords: network traffic analysis for cybersecurity, common network attack vectors and mitigation, IPsec tunnel mode vs transport mode detailed.

Mobile Communication phone_iphonesettings_input_antenna

Modern mobile communication networks, from 3G and 4G LTE (Long-Term Evolution) to the latest 5G (Fifth Generation) deployments, are fundamentally IP-based networks. When your smartphone, tablet, or other mobile-enabled device connects to the internet or makes a VoLTE/VoNR call, it is assigned an IP address by the mobile operator's network, and all data services are delivered over IP.

• Packet Core Network: Mobile networks feature a sophisticated "packet core" (e.g., Evolved Packet Core - EPC in 4G LTE; 5G Core - 5GC in 5G) which is entirely built on IP protocols. This core handles all user data traffic, session management (establishing and tearing down data connections), mobility management (tracking user location and ensuring seamless handovers), and connectivity to external packet data networks like the internet.
• Mobility Management: Complex protocols within the packet core (e.g., related to MME in LTE, AMF/SMF in 5G) manage how a device maintains its IP session and network connectivity as it moves between different cell towers (eNodeBs in LTE, gNodeBs in 5G) and across different tracking or registration areas.
• Quality of Service (QoS): Mobile networks implement intricate QoS mechanisms at the IP layer and below to differentiate and prioritize various types of traffic based on service requirements. For example, real-time services like VoLTE (Voice over LTE) or VoNR (Voice over New Radio for 5G) calls, and interactive gaming are typically given higher priority and guaranteed bitrates compared to general internet Browse or background downloads.
• IPv6 Deployment: Mobile network operators have been significant drivers of IPv6 adoption globally. The sheer number of mobile devices requiring unique IP addresses made the transition to IPv6 a practical necessity for continued network growth and to enable new services. Many mobile devices now receive IPv6 addresses by default from their carriers, often alongside an IPv4 address (dual-stack) or via IPv6-only with NAT64/DNS64 for IPv4 compatibility.

The evolution of mobile networks towards 5G and beyond further emphasizes IP-based architectures, with advanced features like network slicing (creating virtualized, independent logical networks on a common physical infrastructure), edge computing (Multi-access Edge Computing - MEC), and support for massive IoT all heavily relying on flexible, programmable, and scalable IP networking principles.

VLSM (Variable Length Subnet Masking) Explained

Variable Length Subnet Masking (VLSM) is a technique that allows network administrators to divide an IP address space into subnets of different sizes. Unlike traditional (classful) subnetting where all subnets within a major network had to be the same size, VLSM provides the flexibility to allocate IP addresses more efficiently, significantly reducing wasted addresses. This is a direct benefit of Classless Inter-Domain Routing (CIDR).

Why Use VLSM?

• Address Conservation: This is the primary benefit. Different network segments often have vastly different numbers of required host addresses. For example, a point-to-point WAN link between two routers only needs 2 usable IP addresses (a /30 subnet). A small department might need 25 hosts (requiring a /27 subnet), while a server farm might need 100 hosts (a /25 subnet). Without VLSM, you might be forced to use a larger, fixed-size subnet (e.g., a /24 for everything), leading to many unused IPs on smaller segments.
• Hierarchical Addressing: VLSM supports a more structured and hierarchical network design. Larger address blocks can be allocated to regions or major departments, which can then be further subnetted into smaller, appropriately sized subnets for specific functions or locations.
• Route Summarization: While not directly VLSM itself, a hierarchical addressing scheme enabled by VLSM facilitates better route summarization (aggregation). This means routers can advertise fewer, more general routes to other parts of the network, reducing the size of routing tables and improving routing efficiency and stability.

How VLSM Works: The Process

The core idea of VLSM is to take a given IP address block and subnet it iteratively, creating subnets of various sizes based on the requirements of each network segment. The general process is as follows:

1. List Network Requirements: Identify all the network segments that need IP addressing and, for each segment, determine the number of required host IP addresses. Include any anticipated future growth.
2. Sort by Size: Arrange the network segment requirements in descending order, from the largest number of required hosts to the smallest. This is a crucial step for efficient allocation.
3. Allocate for the Largest Segment First:
   • Take your initial available IP address block (e.g., 192.168.0.0/22).
   • For the largest requirement, determine the smallest subnet mask (shortest prefix length) that can accommodate the required number of hosts. Remember, the number of available hosts in a subnet is $2^h - 2$, where $h$ is the number of host bits.
   • Assign the first available subnet of this calculated size from your main block to this largest segment.
4. Allocate for Subsequent Segments:
   • Move to the next largest network requirement on your sorted list.
   • From the remaining unallocated IP address space in your main block, find the smallest subnet mask that satisfies this requirement.
   • Assign the next available subnet of this size to this segment. It's important to ensure this new subnet does not overlap with any previously allocated subnets.
5. Repeat: Continue this process for all network segments until all requirements are met.

VLSM Example:

Suppose you are given the network block 172.16.0.0/22 and need to create subnets for the following requirements:

• Network A: 100 hosts
• Network B: 50 hosts
• Network C: 20 hosts
• Network D: 2 hosts (WAN link)
• Network E: 2 hosts (WAN link)

Step 1 & 2: List and Sort Requirements (already sorted by size):

1. Network A: 100 hosts
2. Network B: 50 hosts
3. Network C: 20 hosts
4. Network D: 2 hosts
5. Network E: 2 hosts

The initial block 172.16.0.0/22 ranges from 172.16.0.0 to 172.16.3.255.

Step 3: Allocate for Network A (100 hosts)

• Need $2^h - 2 \ge 100$. Smallest $h$ is 7 ($2^7 - 2 = 128 - 2 = 126$ hosts).
• Network bits needed: $32 - 7 = 25$. So, a /25 subnet.
• Subnet mask: 255.255.255.128. Subnet size: 128 addresses.
• Allocate: Network A: 172.16.0.0/25 (Range: 172.16.0.0 - 172.16.0.127)

Remaining space: 172.16.0.128 onwards.

Step 4: Allocate for Network B (50 hosts)

• Need $2^h - 2 \ge 50$. Smallest $h$ is 6 ($2^6 - 2 = 64 - 2 = 62$ hosts).
• Network bits needed: $32 - 6 = 26$. So, a /26 subnet.
• Subnet mask: 255.255.255.192. Subnet size: 64 addresses.
• Next available start: 172.16.0.128.
• Allocate: Network B: 172.16.0.128/26 (Range: 172.16.0.128 - 172.16.0.191)

Remaining space: 172.16.0.192 onwards.

Step 5: Allocate for Network C (20 hosts)

• Need $2^h - 2 \ge 20$. Smallest $h$ is 5 ($2^5 - 2 = 32 - 2 = 30$ hosts).
• Network bits needed: $32 - 5 = 27$. So, a /27 subnet.
• Subnet mask: 255.255.255.224. Subnet size: 32 addresses.
• Next available start: 172.16.0.192.
• Allocate: Network C: 172.16.0.192/27 (Range: 172.16.0.192 - 172.16.0.223)

Remaining space: 172.16.0.224 onwards.

Step 6: Allocate for Network D (2 hosts - WAN)

• Need $2^h - 2 \ge 2$. Smallest $h$ is 2 ($2^2 - 2 = 4 - 2 = 2$ hosts).
• Network bits needed: $32 - 2 = 30$. So, a /30 subnet.
• Subnet mask: 255.255.255.252. Subnet size: 4 addresses.
• Next available start: 172.16.0.224.
• Allocate: Network D: 172.16.0.224/30 (Range: 172.16.0.224 - 172.16.0.227)

Remaining space: 172.16.0.228 onwards.

Step 7: Allocate for Network E (2 hosts - WAN)

• Need 2 hosts, so a /30 subnet (4 addresses).
• Next available start: 172.16.0.228.
• Allocate: Network E: 172.16.0.228/30 (Range: 172.16.0.228 - 172.16.0.231)

This process shows how VLSM allows fitting variously sized subnets into a larger block efficiently. The remaining unallocated space (from 172.16.0.232 up to 172.16.3.255) is still available for future needs or further subnetting.

Practicing VLSM design is a key skill for network engineers, especially when preparing for certifications like CCNA and CCNP.

Understanding Bitcricket and Basic Packet Analysis Concepts

While "Bitcricket" might not be a universally known mainstream tool, the name sometimes surfaces in niche networking communities or refers to smaller, specialized packet analysis utilities. Regardless of a specific tool's name, the core concept it likely touches upon is packet analysis or packet sniffing.

Packet analysis is the process of capturing, decoding, and examining the data packets that traverse a computer network. This is a fundamental skill for network troubleshooting, performance analysis, security monitoring, and understanding how network protocols operate in the real world.

Common Functions of Packet Analysis Tools (like Wireshark or potentially "Bitcricket"-like utilities):

• Packet Capture: The ability to select a network interface (Ethernet, Wi-Fi, etc.) and record all (or a filtered subset of) data packets that pass through it. This often requires putting the interface into "promiscuous mode" to see all traffic on the segment, not just traffic addressed to the capturing machine.
• Protocol Dissection (Decoding): After capturing packets, the tool decodes them according to the rules of various network protocols. It breaks down each packet into its constituent layers (e.g., Ethernet frame header, IP packet header, TCP/UDP segment header, Application data like HTTP). This allows users to see the values of different fields within each protocol header.
• Filtering:
  • Capture Filters: Allow users to specify criteria (e.g., based on IP addresses, port numbers, protocols) to capture only the traffic of interest, reducing the size of the capture file and focusing the analysis.
  • Display Filters: After a capture is complete, display filters help users sift through potentially thousands or millions of packets to find specific conversations, errors, or patterns relevant to their investigation.
• Stream Reconstruction: For connection-oriented protocols like TCP, many analyzers can reconstruct the entire data stream of a conversation, making it easier to see the flow of application data (e.g., an HTML page being downloaded, an email being sent).
• Statistical Analysis: Provide summaries and statistics about the captured traffic, such as conversations, endpoints, protocol hierarchies, packet lengths, I/O graphs, and error rates.
• Real-time and Offline Analysis: Most tools support capturing live traffic and also opening and analyzing previously saved capture files (commonly in .pcap or .pcapng format).

Why is Packet Analysis Important?

• Troubleshooting: "The packets don't lie." When network or application problems occur, analyzing packet captures can reveal the exact cause, whether it's incorrect IP addressing, routing issues, firewall misconfigurations, DNS failures, TCP retransmissions indicating packet loss, or application-level errors.
• Security: Security professionals use packet analysis to detect malicious activity (e.g., scanning, malware communication, data exfiltration), analyze intrusions, and conduct network forensics.
• Performance Optimization: Identifying sources of latency, excessive retransmissions, inefficient protocol usage, or network congestion.
• Learning and Protocol Understanding: There's no better way to understand how protocols like TCP, DNS, or HTTP work than to see their actual packet exchanges.

If "Bitcricket" refers to a specific utility, its functions would likely fall within this broader scope of packet analysis, perhaps offering a simplified or specialized set of features compared to comprehensive tools like Wireshark. For deep and professional packet analysis, Wireshark remains the industry standard, complemented by command-line tools like tcpdump (for Linux/macOS) or WinDump (for Windows).

Network Planning Essentials: A Conceptual Guide

Effective network planning is a critical first step in building a robust, scalable, secure, and efficient network infrastructure that meets current and future organizational needs. While a full, interactive "network planner" tool is a complex software application, understanding the core principles and steps involved in network planning is essential for any IT professional.

This section provides a conceptual guide to the key considerations in network planning:

1. Requirements Gathering & Analysis:
   • Identify Users and Devices: How many users will the network support? What types of devices (desktops, laptops, servers, printers, IP phones, IoT devices, etc.) will connect? Consider both current numbers and projected growth over the next 3-5 years.
   • Define Service Needs: What applications and services will run on the network (e.g., email, web Browse, file sharing, databases, VoIP, video conferencing, specific business applications)? What are their bandwidth, latency, and reliability requirements?
   • Performance Expectations: What are the acceptable levels of network performance (throughput, latency, jitter) for different applications and user groups?
   • Security Requirements: What level of security is needed? Are there specific compliance regulations (e.g., HIPAA, PCI DSS, GDPR) that must be met? What are the data sensitivity levels?
   • Budgetary Constraints: What is the available budget for hardware, software, cabling, installation, and ongoing maintenance?
   • Physical Environment: Understand the physical layout of the office(s), campus, or data center where the network will be deployed. Consider distances, potential sources of interference (for wireless), and pathways for cabling.
2. Logical Network Design & IP Addressing Strategy:
   • IP Addressing Scheme: Decide on IPv4, IPv6, or a dual-stack approach. Plan your public and private IP address allocation. If using private IPv4 (RFC 1918), choose appropriate address blocks (e.g., 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16).
   • Subnetting Plan (VLSM): Based on requirements (number of hosts per segment, security/broadcast domain separation), design a subnetting scheme using Variable Length Subnet Masking (VLSM) to efficiently utilize your IP address space. Our IPv4 Subnet Calculator and VLSM guide can assist here. For example, allocate separate subnets for user workstations, servers, printers, guest Wi-Fi, voice traffic (VoIP), management traffic, etc.
   • VLAN Design: Plan Virtual LANs (VLANs) to logically segment the network at Layer 2, further enhancing security and organization. Map VLANs to IP subnets.
   • Routing Strategy: How will traffic be routed between subnets/VLANs and to external networks (like the internet)? Plan for static or dynamic routing protocols (e.g., OSPF for internal routing, BGP for internet connectivity if multi-homed).
   • Naming Conventions: Establish consistent naming conventions for devices, interfaces, VLANs, and subnets to simplify management and troubleshooting.
3. Physical Network Design & Topology:
   • Network Topology: Choose an appropriate physical and logical topology. For modern LANs, a hierarchical star or extended star topology is common (Access, Distribution, Core layers).
   • Cabling Infrastructure: Plan cable runs, types of cables (e.g., Cat 6/6a for horizontal runs, fiber optics for backbones and long distances - see our cabling tip), patch panels, and network closets (IDFs/MDFs).
   • Wireless Network Design (WLAN): If Wi-Fi is required, plan access point (AP) placement for optimal coverage and capacity, considering potential interference sources. Perform a site survey if necessary. Choose appropriate Wi-Fi standards (e.g., Wi-Fi 6/6E) and security protocols (WPA3).
4. Hardware and Software Selection:
   • Based on performance, scalability, feature, and budget requirements, select appropriate network devices:
     • Routers: For inter-subnet routing and WAN connectivity.
     • Switches: Core, distribution, and access layer switches with necessary features (PoE, port density, speed, VLAN support, L3 capabilities if needed).
     • Firewalls: Next-Generation Firewalls (NGFWs) for perimeter security and internal segmentation.
     • Wireless Access Points (WAPs) and Controllers (if applicable).
     • Load Balancers, VPN Concentrators, etc.
   • Select Network Operating Systems (NOS) and any necessary management software or licenses.
5. Network Security Plan:
   • Perimeter Security: Firewall policies, Intrusion Detection/Prevention Systems (IDS/IPS).
   • Internal Segmentation: Use VLANs and internal firewalling to control traffic flow between different network segments. Apply the principle of least privilege.
   • Access Control: Implement Network Access Control (NAC), 802.1X authentication for wired/wireless access. Manage user authentication and authorization.
   • VPNs: For secure remote access and site-to-site connections.
   • Endpoint Security Integration: Ensure network security measures complement endpoint security.
   • Logging and Monitoring: Plan for centralized logging (Syslog, SIEM) and security event monitoring.
6. Redundancy and High Availability (HA):
   • Identify single points of failure and plan for redundancy in critical network components (e.g., redundant power supplies, redundant links using LACP, redundant routers/firewalls using protocols like HSRP/VRRP, multiple ISP connections).
   • Plan for failover mechanisms and disaster recovery (DR) for network services.
7. Network Management and Monitoring:
   • Select tools for network monitoring (performance, availability, utilization), configuration management, and troubleshooting. Protocols like SNMP, NetFlow, sFlow are important here.
   • Establish baseline performance metrics.
8. Implementation Plan & Documentation:
   • Develop a phased implementation plan to minimize disruption.
   • Create comprehensive network documentation, including physical and logical diagrams, IP addressing schemes, device configurations, security policies, and troubleshooting guides. This is crucial for ongoing management and future changes.
9. Testing and Validation:
   • Thoroughly test all aspects of the network after implementation to ensure it meets requirements for performance, security, and reliability.
10. Future Scalability and Review:
    • Design the network with future growth in mind.
    • Periodically review and update the network plan as organizational needs and technologies evolve.

While this guide is conceptual, it highlights the structured thinking required for successful network planning. Each of these steps can involve significant detail and technical expertise.

How to Study IP and Networking – Courses & Certifications

Embarking on a journey to master IP and computer networking can be incredibly rewarding, opening doors to a multitude of career opportunities in the ever-expanding IT landscape. A structured approach combining theoretical learning, extensive hands-on practice, and industry-recognized certifications is often the most effective path to success. Here’s a roadmap on how to learn IP addressing, understand networking protocols, and prepare for a career in this dynamic field.

Key Networking Certifications: Validating Your Skills

Certifications serve as tangible proof of your knowledge and skills, often valued by employers when hiring for networking roles. They provide a structured learning path and cover industry-standard concepts and practices.

• CompTIA Network+
  • Focus: This is a globally recognized, vendor-neutral certification that validates the essential knowledge and skills needed to confidently design, configure, manage, and troubleshoot both wired and wireless networks. It covers networking fundamentals, implementations, operations, security, and troubleshooting across various platforms.
  • Ideal for: Individuals starting their IT career, aspiring network technicians, help desk support roles, or anyone needing a solid, broad understanding of networking concepts irrespective of specific vendor technologies. Many consider it a foundational certification before specializing further. It answers the question "What is the best entry level networking certification?" for many.
  • Key Topics (Typically reflecting exams like N10-008/N10-009): IP addressing and subnetting (both IPv4 and IPv6), the OSI model and TCP/IP suite, common network protocols (TCP, UDP, DNS, DHCP, HTTP, etc.), network topologies and media (UTP/STP cabling categories, fiber optics, Wi-Fi standards and frequencies), network devices (routers, switches, firewalls, access points, modems), network security concepts (common threats, hardening, wireless security), and network troubleshooting methodologies and tools.
  • Keywords: CompTIA Network+ certification study guide, is Network+ certification worth it for career change, Network+ exam objectives and domains pdf.
• Cisco Certified Network Associate (CCNA)
  • Focus: The CCNA (currently exam 200-301) is one of the most respected and sought-after associate-level certifications in the IT industry. While it primarily focuses on implementing and administering Cisco networking solutions, it covers a broad and deep range of fundamental and intermediate networking concepts that are universally applicable. It validates your ability to install, configure, operate, and troubleshoot medium-sized routed and switched networks.
  • Ideal for: Individuals aiming for roles such as network administrator, network support engineer, network operations center (NOC) technician, or network specialist, particularly (but not exclusively) in environments utilizing Cisco networking equipment. It's also highly valuable for anyone wanting a deep, practical understanding of how modern networks function at a detailed level. Our calculators, like the IPv4 Subnet Calculator and CIDR Calculator, are excellent aids when studying the extensive subnetting portions of the CCNA curriculum.
  • Key Topics (for 200-301 CCNA): Network fundamentals (roles of routers, switches, firewalls, access points; network topologies; physical interface and cabling types; TCP vs UDP; IPv4 and IPv6 addressing and subnetting), network access (VLANs, trunking, EtherChannel, Wi-Fi principles), IP connectivity (interpreting routing tables, static routing, OSPFv2 configuration and verification), IP services (DHCP, DNS, NAT, NTP, SNMP, Syslog), security fundamentals (access control lists - ACLs, port security, VPN concepts, wireless security protocols), and an introduction to automation and network programmability (REST APIs, Puppet, Chef, Ansible, JSON encoded data).
  • Keywords: CCNA 200-301 official certification guide and practice tests, how to pass CCNA exam on first attempt tips, Network+ vs CCNA which is better for starting career, best CCNA online training courses with labs.

As you advance in your networking career or wish to specialize, several other valuable certifications can significantly boost your credentials and expertise:

• Cisco Certified Network Professional (CCNP)
  • Focus: A professional-level certification from Cisco that validates advanced knowledge and skills required for enterprise networking solutions. The CCNP Enterprise certification, for instance, involves passing a core exam covering enterprise network technologies and then choosing one of several concentration exams focusing on areas like advanced routing, SD-WAN solutions, wireless design and implementation, or network automation. Other CCNP tracks include Security, Data Center, Collaboration, and Service Provider.
  • Ideal for: Experienced network engineers, systems engineers, network designers, and senior support engineers looking to demonstrate expertise in planning, implementing, verifying, and troubleshooting complex local and wide area enterprise networks.
  • Keywords: CCNP Enterprise core exam ENCOR 350-401, CCNP concentration exams list, benefits of CCNP certification.
• CompTIA Security+
  • Focus: While primarily a cybersecurity certification, Security+ has a significant overlap with networking because robust network security is integral to overall IT security. It validates the baseline skills necessary to perform core security functions and pursue an IT security career, including network security concepts, threats, vulnerabilities, and mitigation techniques.
  • Ideal for: Individuals aiming for entry to mid-level cybersecurity roles (like security analyst or junior ***** tester) or for network administrators and systems administrators who want to strengthen their security knowledge and responsibilities.
  • Keywords: CompTIA Security+ SY0-601/SY0-701 objectives, Security+ for network administrators.
• Other Vendor-Specific Certifications: Many other networking hardware and software vendors offer highly regarded certification programs. Specializing in a particular vendor's technology can be beneficial if you work or intend to work extensively with their products. Examples include:
  • Juniper Networks Certified Associate/Specialist/Professional/Expert (JNCIA, JNCIS, JNCIP, JNCIE): For professionals working with Juniper networking equipment (routers, switches, firewalls).
  • Aruba Certified Mobility Associate/Professional/Expert (ACMA, ACMP, ACMX) / Aruba Certified Switching Associate/Professional (ACSA, ACSP): For wireless and wired networking professionals focusing on HPE Aruba solutions.
  • Palo Alto Networks Certified Network Security Administrator/Engineer (PCNSA, PCNSE): For security professionals working with Palo Alto Networks next-generation firewalls and security platforms.
• Cloud Networking Certifications: As more infrastructure moves to the cloud, certifications focused on cloud networking are becoming increasingly valuable.
  • AWS Certified Advanced Networking – Specialty: Validates expertise in designing and implementing complex AWS and hybrid IT network architectures at scale. Covers VPCs, Direct Connect, Transit Gateway, Route 53, CloudFront, and network security in AWS.
  • Microsoft Certified: Azure Network Engineer Associate: Focuses on designing, implementing, and managing core Azure networking resources, including virtual networks, load balancing, network security groups, Azure Firewall, and hybrid connectivity.
  • Google Cloud Professional Cloud Network Engineer: Demonstrates proficiency in designing, implementing, and managing secure and high-performing network architectures on Google Cloud Platform (GCP), covering VPCs, Cloud Interconnect, Cloud VPN, and load balancing.

It's important to always check the official vendor or organization websites for the latest information on certification tracks, exam objectives, prerequisites, and renewal policies, as these evolve with technology. Keywords for this area include: Best networking certifications for career advancement 2025, advanced network security certifications list, cloud networking certification paths and salaries.

Online Learning Platforms & Educational Resources

Beyond formal certifications, a vast array of online resources can supplement your studies, provide ongoing learning, and help you stay current with the rapidly changing world of networking:

• MOOCs (Massive Open Online Courses) and Course Platforms:
  • Coursera, Udemy, edX: These platforms host a multitude of networking courses, ranging from introductory IT fundamentals to advanced network design, cybersecurity, and cloud networking. Many courses are taught by university professors or seasoned industry professionals, and often include practical exercises or quizzes. Look for courses that align with certification objectives or delve into specialized topics that interest you.
  • Cybrary, ITProTV, Pluralsight, LinkedIn Learning: These are popular subscription-based platforms offering extensive video libraries of IT and cybersecurity training content. They often feature dedicated learning paths for networking, specific certifications, and various vendor technologies, delivered by experienced instructors.
• Vendor-Specific Training Portals and Documentation:
  • Cisco Networking Academy (NetAcad): A global IT and cybersecurity education program that provides courses, interactive learning tools, simulation software (Packet Tracer), and hands-on labs through educational institutions and online. It's an excellent resource for Cisco certifications (like CCNA, CyberOps Associate) and general IT skills.
  • AWS Training and Certification, Microsoft Learn (for Azure), Google Cloud Training: These official platforms provide a wealth of documentation, free digital training modules, hands-on labs, and clear pathways to their respective cloud certifications, including those focused on networking.
  • Juniper Open Learning, Fortinet Network Security Expert (NSE) Institute: Many vendors offer free or affordable online training resources for their technologies and certification programs.
• Books and Official Documentation:
  • Official Certification Guides (OCGs): Publishers like Cisco Press (for Cisco certifications), Sybex (for CompTIA certifications), and Microsoft Press produce comprehensive study guides specifically aligned with the objectives of major certification exams.
  • Classic Networking Textbooks: For a deep theoretical understanding of networking principles, consider renowned books such as "Computer Networking: A Top-Down Approach" by James F. Kurose and Keith W. Ross, the "TCP/IP Illustrated" series (originally by W. Richard Stevens, continued by Gary R. Wright), or Andrew S. Tanenbaum's "Computer Networks."
  • RFCs (Request for Comments): These are the definitive technical specifications and standards documents for internet protocols and architecture, published by the Internet Engineering Task Force (IETF) and available via the RFC Editor website. While often very technical and dense, they are the ultimate source of truth for protocol details.
• Online Communities, Forums, and Technical Blogs:
  • Websites like Reddit (e.g., subreddits r/networking, r/ccna, r/homelab, r/sysadmin, r/cybersecurity), Spiceworks Community, Stack Exchange (particularly Network Engineering Stack Exchange), and various vendor-specific user forums are excellent places to ask questions, share knowledge, troubleshoot problems with peers, and stay current with industry discussions and trends.
  • Many networking experts, vendors, and training providers maintain blogs that offer valuable insights, tutorials, news updates, and practical advice.

Keywords for finding resources: free online computer networking courses with certificates for beginners, best Udemy courses for CCNA and Network+ preparation, Cisco NetAcad login and Packet Tracer download, AWS networking fundamentals free training modules, top networking blogs to follow.

The Critical Role of Hands-on Labs: Simulators, Emulators, and Physical Gear

While theoretical knowledge provides the essential foundation, practical, hands-on experience is what truly solidifies networking skills, builds troubleshooting intuition, and prepares you for real-world job responsibilities. Setting up and diligently working through lab exercises is non-negotiable for anyone serious about a career in networking.

• Network Simulators & Emulators: These software tools allow you to create, configure, and test virtual network environments without the expense or complexity of physical hardware.
  • Cisco Packet Tracer: A free network simulation tool provided by Cisco Networking Academy. It offers a user-friendly visual environment where you can build network topologies by dragging and dropping simulated Cisco routers, switches, firewalls, wireless devices, servers, and end-user devices. It's an excellent tool for beginners and those preparing for Cisco certifications like the CCNA, as it allows users to practice configuring Cisco IOS commands, observe packet flow in a detailed simulation mode (visualizing how data moves through the network and how different protocols interact), and understand fundamental network behaviors in a controlled setting.
  • GNS3 (Graphical Network Simulator-3): A powerful, open-source network software emulator. Unlike pure simulators that primarily mimic device behavior based on pre-programmed models, GNS3 allows users to run actual network operating system (NOS) images (e.g., Cisco IOS, Cisco NX-OS, Juniper JunOS, Arista EOS, FortiOS, pfSense firewall) inside virtual machines (often integrating with virtualization software like QEMU, VirtualBox, or VMware Workstation/Player). This provides a highly realistic and feature-rich lab experience, enabling users to work with the full command sets and capabilities of real network devices. GNS3 is highly suitable for more advanced studies (such as CCNP or CCIE preparation) and for testing complex, multi-vendor network scenarios.
  • EVE-NG (Emulated Virtual Environment Next Generation): Another robust multi-vendor network emulation platform, popular among networking professionals and certification candidates for creating large and complex lab setups for professional-level certifications (like CCIE) and for proof-of-concept testing of enterprise network designs. It supports a very wide array of vendor NOS images and offers both a free community edition and a paid professional edition with more features. EVE-NG is often praised for its ease of use in deploying numerous nodes and its convenient browser-based HTML5 interface.
• Building a Home Lab (Physical Equipment):
  • For those who prefer tangible experience, investing in used or refurbished enterprise-grade networking equipment (e.g., older but still functional Cisco routers like the 1800/1900/2800/2900 series, switches like the Catalyst 2960/3560/3750 series, or similar affordable gear from Juniper, HP/Aruba, or Dell) can provide invaluable experience with physical hardware, different types of network cabling (see our Quick Tip on Cabling), console connections for out-of-band management, initial device configuration from scratch, firmware upgrades, and troubleshooting physical layer issues that simulators can't replicate. This hands-on interaction with real gear is highly recommended for aspiring network engineers who want to understand the hardware aspects deeply.
• Cloud-Based Labs and Virtual Sandboxes:
  • Major cloud platforms like AWS (Amazon Web Services), Microsoft Azure, and GCP (Google Cloud Platform) offer extensive virtual networking capabilities that can be used to create sophisticated lab environments. You can provision virtual private clouds (VPCs/VNets), define subnets, configure route tables, deploy virtual routers and firewalls (security groups/NSGs, dedicated virtual firewall appliances), set up load balancers, and establish VPN connections entirely in software. This is excellent for learning cloud networking concepts, practicing with specific cloud vendor services and APIs, and understanding how networking operates in a highly virtualized, software-defined environment. Many of these platforms offer free tiers, trial credits, or educational programs for new users to get started.

Actively engaging with labs—not just following tutorials but also designing your own topologies, configuring devices from scratch, implementing various routing protocols and security policies, and systematically troubleshooting induced problems—is the most effective way to translate theoretical knowledge into practical, job-ready skills and build the confidence needed to manage real-world networks. Keywords: Cisco Packet Tracer lab exercises for CCNA routing and switching free download, GNS3 vs EVE-NG for building CCIE enterprise labs, building a home networking lab on a budget for practice, free AWS or Azure networking lab exercises for beginners, importance of hands-on labs for IT certifications.

Career Paths in Networking and IT Infrastructure

A robust understanding of IP and computer networking principles serves as a launchpad for a wide array of fulfilling and consistently in-demand career opportunities within the broader IT and technology sectors. As organizations across all industries increasingly rely on resilient, secure, and high-performing digital infrastructure, skilled professionals who can design, implement, manage, and secure these networks are highly sought after. The specific roles and responsibilities can vary significantly based on the size and type of the organization, but networking knowledge is a common thread.

Network Administrator

• Core Responsibilities: Network Administrators are often the primary guardians of an organization's day-to-day network operations. Their central role is to ensure the network infrastructure is stable, secure, available, and performing optimally to meet the ongoing needs of the business and its users. Key tasks typically include:
  • Installing, configuring, and maintaining network hardware components such as routers, switches, firewalls, wireless access points (WAPs), and load balancers.
  • Monitoring network performance, availability, and bandwidth utilization using various network monitoring tools.
  • Troubleshooting network connectivity issues reported by users or detected by monitoring systems, often acting as a second or third line of support.
  • Managing user accounts, network access permissions, and enforcing network security policies.
  • Applying operating system updates, security patches, and firmware upgrades to network devices in a timely manner.
  • Implementing and maintaining network security measures according to organizational policies and best practices (e.g., firewall rule management, VPN configuration).
  • Performing regular backups of network device configurations and participating in disaster recovery planning and testing.
  • Creating and maintaining comprehensive documentation of the network infrastructure, including diagrams, configurations, and standard operating procedures (SOPs).
  • Providing technical support and guidance to end-users and other IT staff for network-related problems.
• Essential Skills: A strong and practical grasp of TCP/IP fundamentals (IPv4 and increasingly IPv6), common LAN/WAN technologies (Ethernet, Wi-Fi, MPLS, VPNs), hands-on experience with network hardware from major vendors (e.g., Cisco, Juniper, Aruba, Fortinet), proficiency in network operating systems (e.g., Cisco IOS/NX-OS, JunOS), familiarity with network monitoring tools (e.g., Nagios, Zabbix, SolarWinds, PRTG, Wireshark for troubleshooting), a solid understanding of network security principles, and excellent problem-solving, analytical, and communication skills. Foundational certifications like CompTIA Network+ or Cisco CCNA are often required or highly beneficial starting points.
• Typical Job Description Keywords: Network support, IT infrastructure management, LAN/WAN administration, router and switch configuration, firewall administration, TCP/IP troubleshooting, VPN management, network monitoring, Active Directory integration (often), user support for network issues.
• Approximate Salary Range (USA - varies significantly by experience, certifications, location, and company size/industry): $60,000 - $95,000+ per year for mid-level roles, with entry-level positions starting lower and senior administrators earning more.
• Keywords for Job Search: network administrator jobs entry level no experience, junior network administrator duties and responsibilities, network administrator certifications list, skills needed for network administrator role.

Network Engineer

• Core Responsibilities: Network Engineers typically delve deeper into the design, implementation, and strategic management of network infrastructures. While administrators focus on day-to-day operations, engineers often handle more complex projects, architect new network segments, upgrade existing infrastructure, and provide higher-level troubleshooting. Their responsibilities can include:
  • Designing and planning network layouts for LANs, WANs, data centers, and cloud environments, considering scalability, resilience, security, and performance.
  • Selecting, installing, configuring, and testing advanced network hardware (enterprise-grade routers, switches, firewalls, load balancers, wireless controllers).
  • Implementing and managing complex routing protocols (e.g., OSPF, EIGRP, BGP) and switching technologies (e.g., VLANs, STP, LACP, VXLAN).
  • Developing and enforcing network security policies, including firewall rule sets, VPN configurations, intrusion detection/prevention systems, and Network Access Control (NAC).
  • Optimizing network performance through traffic shaping, Quality of Service (QoS) implementation, and capacity planning.
  • Leading network migration projects (e.g., IPv4 to IPv6, new hardware rollouts, SD-WAN deployments).
  • Serving as an escalation point for critical or persistent network issues.
  • Evaluating new networking technologies and making recommendations.
  • Developing network automation scripts and solutions.
• Essential Skills: An in-depth and practical understanding of the TCP/IP suite, OSI model, advanced routing protocols (OSPF, BGP are crucial), complex switching concepts (VLANs, STP, EtherChannel, VSS/StackWise), WAN technologies (MPLS, SD-WAN, Metro Ethernet), network security architectures (firewalls, VPNs, IDS/IPS, NAC, segmentation), data center networking (leaf-spine, VXLAN/EVPN), cloud networking (AWS, Azure, GCP virtual networking), network monitoring and analysis tools (Wireshark, SolarWinds, PRTG, NetFlow/sFlow analyzers), and increasingly, scripting/automation skills using Python, Ansible, or other relevant tools. Certifications like CCNA are foundational, with CCNP (Enterprise, Security, Data Center, etc.), JNCIP, or equivalent vendor/neutral certifications being highly common and often required for mid-to-senior roles.
• Typical Job Description Keywords: Network design and architecture, implementation and migration, BGP/OSPF/EIGRP configuration and troubleshooting, Cisco IOS/NX-OS/XR, Juniper JunOS, Arista EOS, Palo Alto Networks/Fortinet firewalls, network security design, capacity planning, network optimization, SD-WAN solutions, data center networking, network automation with Python/Ansible.
• Approximate Salary Range (USA - varies significantly): $75,000 - $130,000+ per year for mid-level engineers, with senior engineers and specialists commanding significantly higher salaries.
• Keywords for Job Search: network engineer job requirements and skills, how to become a network design engineer, Network engineer salary trends and outlook 2025, Cisco CCNP enterprise jobs.

Systems Administrator / Systems Engineer

• Core Responsibilities: These roles, while sometimes distinct, often overlap and are centered on the server infrastructure, operating systems (Windows Server, Linux), virtualization platforms (VMware vSphere, Microsoft Hyper-V, KVM), storage solutions (SAN, NAS), and critical enterprise applications that run on these systems. A strong understanding of networking is vital because servers are heavily reliant on network connectivity for client access, inter-server communication (e.g., in clustered environments), access to storage networks, integration with directory services (like Active Directory), database connectivity, and for delivering services to end-users.
  • Systems Administrators typically focus on the day-to-day management, maintenance, monitoring, security hardening, patching, backups, and troubleshooting of server operating systems and associated applications.
  • Systems Engineers may be more involved in the design, implementation, integration, automation, and optimization of server and system solutions, often working on more complex infrastructure projects and capacity planning.
• Essential Skills: Expertise in server operating systems (Windows Server administration, various Linux distributions like RHEL, CentOS, Ubuntu Server), virtualization technologies, storage area networks (SANs - e.g., Fibre Channel, iSCSI) and network-attached storage (NAS), directory services (e.g., Active Directory design and GPO management, LDAP), scripting languages for automation (PowerShell, Bash, Python), familiarity with cloud platform administration (IaaS services on AWS, Azure, GCP), robust backup and disaster recovery procedures, system monitoring tools, and solid networking fundamentals including TCP/IP, DNS, DHCP, firewall concepts, and network security best practices as they apply to server hardening.
• Typical Job Description Keywords: Server administration, Windows Server 2019/2022 administrator, Linux systems engineer (RHEL/CentOS/Ubuntu), VMware vSphere/ESXi administrator, Microsoft Hyper-V, Active Directory management, Group Policy Objects (GPO), system integration, IT infrastructure support, server patching and security hardening, backup and recovery solutions.
• Approximate Salary Range (USA): Systems Administrators: $65,000 - $100,000+; Systems Engineers: $75,000 - $120,000+ per year, varying by specialization and experience.

Cloud Architect / Cloud Engineer

• Core Responsibilities: With the pervasive adoption of cloud computing, these roles are critical and in very high demand.
  • Cloud Engineers are responsible for building, deploying, managing, and optimizing applications and infrastructure on major cloud platforms such as Amazon Web Services (AWS), Microsoft Azure, or Google Cloud Platform (GCP). This involves configuring virtual machines (VMs), containers (Docker, Kubernetes), serverless functions, storage services, databases, and, crucially, designing and implementing virtual networking components within the cloud.
  • Cloud Architects focus on designing the overall cloud computing strategy and architecture for an organization. They translate business requirements into scalable, resilient, secure, and cost-effective cloud solutions. This includes selecting appropriate cloud services, designing for high availability and disaster recovery, planning migrations from on-premises infrastructure to the cloud, and ensuring compliance and governance.
  IP networking is a fundamental pillar of cloud computing. Responsibilities include designing Virtual Private Clouds (VPCs) or Virtual Networks (VNets), configuring subnets (our IPv4 Subnet Calculator is useful for planning these!), route tables, internet gateways, NAT gateways, security groups (SGs) or Network Security Groups (NSGs), virtual network peering, load balancers (Application Load Balancers, Network Load Balancers), and establishing secure and reliable connectivity between on-premises networks and the cloud (using VPNs, AWS Direct Connect, Azure ExpressRoute, Google Cloud Interconnect).
• Essential Skills: In-depth knowledge and hands-on experience with at least one major cloud platform (AWS, Azure, GCP), strong understanding of virtualization and containerization technologies (Docker, Kubernetes), proficiency with Infrastructure as Code (IaC) tools (e.g., Terraform, AWS CloudFormation, Azure Resource Manager templates, Google Cloud Deployment Manager), scripting languages (Python, PowerShell, Bash), DevOps principles and CI/CD pipelines, robust security best practices for cloud environments (Identity and Access Management - IAM, encryption, network security), and advanced networking skills specifically tailored to cloud services, software-defined networking (SDN), and hybrid cloud architectures. Relevant cloud vendor certifications (e.g., AWS Solutions Architect, Azure Administrator/Solutions Architect, Google Cloud Professional Cloud Architect/Network Engineer) are highly valued.
• Typical Job Description Keywords: AWS solutions architect, Azure cloud infrastructure engineer, GCP cloud platform engineer, cloud migration specialist, DevOps engineer (with cloud focus), Kubernetes SRE, serverless application development, cloud network security specialist, infrastructure as code automation.
• Approximate Salary Range (USA): Cloud Engineers: $90,000 - $160,000+; Cloud Architects: $120,000 - $200,000+ per year, often higher due to strong demand.
• Keywords for Job Search: Cloud networking engineer jobs roles and responsibilities, AWS Certified Advanced Networking Specialty jobs, Azure network architect career path, Google Cloud network engineer salary.

Cybersecurity Analyst / Cybersecurity Engineer

• Core Responsibilities: These professionals are dedicated to protecting an organization's information systems, networks, and data from cyber threats.
  • Cybersecurity Analysts (often found in Security Operations Centers - SOCs) typically monitor networks and systems for security breaches, intrusions, or anomalous activity. They analyze security alerts, investigate incidents, perform vulnerability assessments, triage events, and contribute to threat intelligence gathering and reporting.
  • Cybersecurity Engineers focus on designing, implementing, maintaining, and upgrading security solutions and infrastructure. This includes configuring firewalls, intrusion detection/prevention systems (IDS/IPS), VPNs, endpoint protection platforms (EPP/EDR), Security Information and Event Management (SIEM) systems, and data loss prevention (DLP) tools. They also develop and enforce security policies, standards, and procedures.
  A profound understanding of network protocols (TCP/IP, DNS, HTTP, SMTP, etc.), network traffic analysis, common network-based attack vectors (e.g., DoS/DDoS, Man-in-the-Middle attacks, reconnaissance scans, malware propagation techniques), and network forensics is absolutely critical for success in both roles.
• Essential Skills: Strong knowledge of network security principles and best practices, hands-on experience with configuring and managing firewalls (e.g., Palo Alto Networks, Fortinet, Cisco ASA/Firepower), IDS/IPS technologies, SIEM tools (e.g., Splunk, QRadar, Elastic Stack/SIEM), vulnerability scanning tools (e.g., Nessus, OpenVAS, Qualys), ***** testing methodologies (for engineers and testers), incident response procedures and frameworks (e.g., NIST), packet analysis skills (using tools like Wireshark), operating system security (Windows, Linux), and familiarity with various security frameworks (e.g., NIST Cybersecurity Framework, ISO 27001) and compliance regulations (e.g., PCI DSS, HIPAA, GDPR, depending on industry). Relevant certifications like CompTIA Security+, CySA+, GSEC, CEH, OSCP, CISSP are highly valuable and often sought by employers.
• Typical Job Description Keywords: Information security analyst, SOC analyst Tier 1/2/3, cybersecurity engineer, ***** tester, ethical hacker, incident responder, network security engineer, SIEM administrator, firewall engineer, vulnerability management specialist.
• Approximate Salary Range (USA): Analysts: $70,000 - $120,000+; Engineers: $90,000 - $150,000+ per year, with significant variation based on experience, certifications, and specialization.

Network Architect

• Core Responsibilities: This is typically a senior-level, strategic role focused on the high-level design, planning, and evolution of complex network infrastructures. Network Architects translate overarching business requirements and technology strategies into scalable, resilient, secure, and cost-effective network solutions. They are responsible for:
  • Developing the long-term network vision and technology roadmap for an organization.
  • Creating and maintaining network standards, blueprints, and architectural documentation.
  • Designing solutions for LAN, WAN, data center, cloud, and hybrid network environments.
  • Evaluating emerging networking technologies (e.g., SD-WAN, SASE, 5G, advanced network automation) and making recommendations for adoption.
  • Leading or providing expert guidance on large-scale network implementation, migration, or transformation projects.
  • Ensuring network designs meet business continuity, disaster recovery, security, and compliance requirements.
  • Collaborating with other architects (e.g., cloud, security, application architects) and business stakeholders.
• Essential Skills: Extensive experience (often 10-15+ years) in network engineering and design across multiple domains, expert-level knowledge of advanced routing protocols (especially BGP and OSPF), complex switching technologies, robust network security architectures, data center networking design (e.g., leaf-spine, VXLAN/EVPN), cloud networking principles (multi-cloud, hybrid cloud), SD-WAN technologies, Quality of Service (QoS) design, network automation and programmability concepts, excellent analytical, communication, presentation, and project leadership skills. Advanced industry certifications such as CCIE (Cisco Certified Internetwork Expert), JNCIE (Juniper Networks Certified Internet Expert), or equivalent vendor-neutral architect-level certifications are often expected or highly regarded.
• Typical Job Description Keywords: Enterprise network design, solution architect (networking focus), network technology strategy, IT infrastructure architect, RFI/RFP development and evaluation, multi-cloud network architecture, data center network design, network capacity planning and optimization.
• Approximate Salary Range (USA): $130,000 - $200,000+ per year, often exceeding this for principal architects or those in high-demand specializations or large enterprises.

IT Support Specialist / Help Desk Technician (Entry Point & Networking Aspect)

• Core Responsibilities: These roles are often the first line of IT support for end-users within an organization, or for customers of an IT service provider. They troubleshoot a wide range of technical issues, a significant portion of which can be network-related. This includes diagnosing why a user can't connect to the Wi-Fi, access shared network drives or printers, reach the internet, or why an application is slow or unresponsive due to network problems.
• Networking Aspect: While not exclusively networking roles, IT support personnel must have a foundational understanding of IP addressing, DNS resolution, DHCP functionality, and how to use basic diagnostic tools like ping, ipconfig (Windows), or ifconfig/ip addr (Linux/macOS) to gather information and perform initial troubleshooting steps. They often escalate more complex network issues to network administrators or engineers.
• Essential Skills: Excellent customer service and communication skills (both verbal and written), strong problem-solving and analytical abilities, patience, foundational knowledge of common operating systems (Windows, macOS, sometimes Linux), common office productivity applications, hardware troubleshooting, and basic networking concepts (TCP/IP, layers, common issues). Certifications like CompTIA A+ and often CompTIA Network+ can be very beneficial for individuals starting in these roles and looking to advance.
• Approximate Salary Range (USA): $45,000 - $70,000+ per year, depending on experience level (Tier 1, Tier 2, etc.), location, and the complexity of the support provided. These are often considered excellent entry-level networking-related roles or stepping stones to more specialized IT positions.

VoIP Engineer / Unified Communications (UC) Engineer

• Core Responsibilities: These engineers specialize in the design, implementation, management, and troubleshooting of voice, video, and collaboration communication systems that operate over IP networks. This encompasses technologies like:
  • IP Private Branch Exchanges (IP PBXs) and VoIP call control platforms.
  • Session Initiation Protocol (SIP) trunking and gateways.
  • VoIP endpoints (IP phones, softphones).
  • Video conferencing systems and infrastructure.
  • Instant messaging and presence platforms.
  • Other collaboration tools that form part of a Unified Communications (UC) strategy.
• Essential Skills: Strong understanding of VoIP protocols (SIP, RTP/RTCP, H.323, MGCP), Quality of Service (QoS) mechanisms for prioritizing real-time voice and video traffic over data traffic on converged networks, knowledge of network infrastructure requirements to support UC (VLANs for voice, Power over Ethernet - PoE for IP phones, call admission control), and often expertise in specific vendor UC platforms (e.g., Cisco Unified Communications Manager (CUCM) and collaboration suite, Microsoft Teams Voice, Avaya Aura, Mitel MiVoice). Troubleshooting call quality issues (jitter, latency, packet loss) is a key skill.
• Approximate Salary Range (USA): $70,000 - $120,000+ per year, depending on experience and specific vendor expertise.

The field of networking is dynamic and continuously evolving, with significant trends like Software-Defined Networking (SDN) (which centralizes network control and abstracts the underlying infrastructure), Network Function Virtualization (NFV) (which decouples network functions like firewalls and load balancers from dedicated hardware appliances), intent-based networking (which aims to automate network operations based on high-level business intent), and the increasing importance of network automation and programmability (using tools and languages like Python, Ansible, and APIs to configure and manage networks). Professionals who embrace continuous learning, develop scripting skills, and adapt to these new paradigms will be well-positioned for long-term success and growth in their networking careers. Keywords for further exploration include: jobs in computer networking with salary information, network automation engineer career path and salary, future trends in networking careers, entry-level IT networking roles without experience requirements.

Useful Networking Resources and Links

To further deepen your understanding, stay current with evolving standards, and connect with the broader networking community, here are some invaluable resources. These websites provide official documentation, industry news, learning materials, and essential tools:

• IANA (Internet Assigned Numbers Authority) : IANA is responsible for the global coordination of critical internet resources, including the DNS Root, IP addressing allocation, and protocol number assignments. Their site is a key reference for understanding the administrative backbone of the internet.
• RFC Editor : The official repository for Request for Comments (RFCs). RFCs are the technical and organizational documents that define Internet standards, protocols (like IP, TCP, HTTP, DNS, IPv6, etc.), experimental ideas, and informational content. They are essential for in-depth protocol understanding and historical context.
• Wireshark : The official website for Wireshark, the world's foremost and widely-used network protocol analyzer. Here you can download the tool for various operating systems, access extensive documentation, find sample capture files, and connect with the Wireshark community.
• Cisco Networking Academy (NetAcad) : Cisco's global IT and cybersecurity education program. NetAcad offers a wide range of courses (many of which are free or low-cost through educational partners), interactive learning tools, simulation software (Packet Tracer), and resources for learning networking, cybersecurity, and other IT skills, often aligned with Cisco certifications.
• WhatIsMyIPAddress.com : A quick and easy online tool to find out your current public IP address and get associated geolocation information. Many similar sites exist and are useful for basic diagnostics.
• Internet Society (ISOC) : A global non-profit organization dedicated to ensuring the open development, evolution, and use of the Internet for everyone. ISOC offers policy insights, reports, educational resources, and supports initiatives related to internet governance and accessibility.
• CompTIA Network+ Certification Information : The official source for information about the CompTIA Network+ certification, including exam objectives, study resources, and registration details.
• Cisco CCNA Certification Information : Official details from Cisco about their widely recognized CCNA certification program.

Engaging with these resources will not only enhance your technical knowledge but also keep you informed about the latest developments and best practices in the ever-evolving field of computer networking.

Conclusion – Why Mastering IP and Networking is Crucial for Your Tech Career

The journey through the intricate world of IP and computer networking—from the foundational bits and bytes of IPv4 and IPv6 addressing, through the architectural elegance of the OSI and TCP/IP models, into the practicalities of key protocols like TCP, UDP, DNS, and HTTP, and finally, to the application of essential troubleshooting tools—underscores one undeniable truth: networking is the lifeblood of the modern digital age. It is the invisible yet omnipresent force that connects us, empowers our myriad technologies, and drives global innovation and commerce.

For anyone involved in technology today, whether aspiring to be a dedicated network engineer, a cybersecurity analyst defending digital frontiers, a cloud architect designing resilient cloud infrastructures, a systems administrator managing critical servers, or even a software developer building the next generation of connected applications, a solid and deep grasp of these networking principles is no longer a niche specialization but a fundamental and indispensable competency. Understanding how data is addressed, how it traverses complex networks, how devices identify and communicate with each other, and how to ensure the reliability, performance, and security of these connections provides an invaluable advantage in virtually any tech-related endeavor.

The benefits of investing time and effort in mastering IP and computer networking are manifold and far-reaching:

• Enhanced Problem-Solving Capabilities: You gain the critical ability to systematically diagnose, troubleshoot, and resolve complex connectivity and performance issues, a skill highly valued in any IT role.
• Informed Design & Architecture Decisions: With a strong foundation, you can design more efficient, scalable, secure, and resilient systems, whether they are on-premises enterprise networks, sophisticated cloud deployments, or distributed software applications.
• Significant Career Advancement Opportunities: Networking skills are consistently in high demand across a multitude of IT roles and specializations. Expertise in this area opens doors to diverse, challenging, and well-compensated career paths, as outlined in our Career Paths section.
• Stronger Security Posture and Awareness: A deep understanding of network operations and protocols is absolutely critical for identifying potential vulnerabilities, implementing effective security measures, and responding to cyber threats.
• A Foundational Layer for Future Learning: Networking is a core building block for many advanced and emerging technologies, including advanced cloud computing, the Internet of Things (IoT), edge computing, cybersecurity specializations, and the infrastructure supporting Artificial Intelligence (AI) and Machine Learning (ML) workloads.

The path to true networking expertise is one of continuous learning, dedicated study, and—most importantly—extensive hands-on practice. We strongly encourage you to:

• Continue Your Exploration: Use this guide as a robust starting point and springboard. Dive deeper into the specific topics that pique your interest or are most relevant to your current or desired career path. Consult the valuable resources listed above and seek out other authoritative learning materials.
• Consider Pursuing Certifications: Industry-recognized certifications like CompTIA Network+, Cisco CCNA, CCNP, and various cloud or security-focused credentials can provide a structured learning path, validate your acquired skills, and significantly enhance your resume.
• Build and Experiment in Labs: Utilize network simulation and emulation tools like Cisco Packet Tracer, GNS3, or EVE-NG. If feasible, consider building a small home lab with physical networking equipment. Practice configuring devices, implementing different protocols, and troubleshooting various scenarios. Cloud platforms also offer excellent virtual lab environments.
• Use Practical Tools: Regularly use the command-line and graphical tools discussed. Practice using our IP Subnet Calculator and other utilities on this site to reinforce your understanding of core concepts like subnetting, CIDR, and IP addressing.

The world of IP and computer networking is vast, intellectually stimulating, and constantly evolving. By committing to understanding its fundamental principles and staying curious, you are investing in a skill set that will remain highly relevant and valuable for many years to come. The network connects everything; mastering its intricacies connects you to a world of opportunity. Happy networking!
